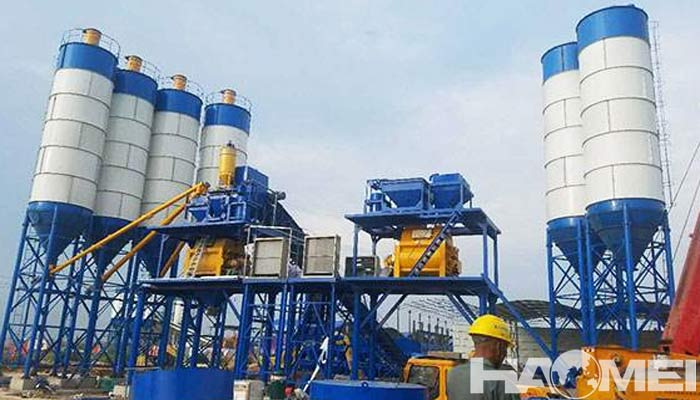

Concrete Batching Plant With SICOMA Mixer

As deeply involved in the export of concrete bathing plant equipment, I have worked on numerous overseas high-end commercial concrete and key infrastructure projects. Owners often have specific requirements regarding the brand and performance of the central mixer of concrete batching plant. Haomei Machinery's concrete batching plant with SICOMA mixer is a high-end solution designed for the high-end market. Leveraging the international-level performance of the SICOMA mixing unit, coupled with independently developed metering, conveying, and electrical control systems, it achieves a comprehensive upgrade in quality, efficiency, and reliability, suitable for high-standard commercial concrete plants, large-scale infrastructure projects, and precast component factories.

As an internationally renowned mixing equipment brand, SICOMA's twin-shaft forced concrete mixers have had their mixing homogeneity and durability proven in the global market. The Haomei high-end concrete batching plant is equipped with a SICOMA MAO series main unit, covering a discharge capacity of 1000L-4000L, corresponding to a theoretical production capacity of 50-180m3/h. Taking the mainstream SICOMA MAO2000 model as an example, the nominal discharge capacity is 2000L/pan, equipped with dual 37kW drive motors and an enhanced gearbox, providing strong load capacity. The standard mixing cycle is stable at 55-60 seconds, ensuring stable continuous production output. The mixing blades adopt a staggered spiral arrangement, combined with optimized linear velocity parameters, to form a three-dimensional material flow field, eliminating dead zones. The mortar density variation coefficient is ≤0.8%, enabling stable production of C10-C60 grade concrete, including pumped concrete, high-performance concrete, and some special concretes. The main unit liner and mixing blades are made of high wear-resistant alloy material, with a wear-resistant component service life of ≥8000 hours under normal operating conditions. The shaft end adopts a multi-labyrinth + oil seal combination sealing structure, minimizing the risk of grout leakage and ensuring excellent long-term operational stability.

A good central mixer requires supporting systems to fully realize its performance advantages. Haomei Machinery equips the SICOMA mixer with a fully independent electronic weighing and metering system, ensuring dynamic weighing error of aggregates ≤±2% and metering error of cement, water, and admixtures ≤±1%. The built-in dynamic drop compensation algorithm perfectly matches the host machine's high-standard mixing requirements, preventing finished product quality degradation due to metering fluctuations. The conveying system features a standard trough-type inclined belt for continuous feeding, matching the bandwidth and conveying efficiency to the host machine's capacity. Aggregate supply rhythm perfectly matches the mixing cycle, eliminating interruptions and ensuring a stable continuous operation rate of 88%-92%, 5-8 percentage points higher than ordinary host machine models. The entire concrete batching plant adopts a modular design, with over 80% of core components pre-assembled in the factory. On-site installation takes 7-12 days, and all disassembled components are compatible with standard container transportation, making it suitable for overseas export scenarios.

Addressing the compliance requirements of high-end projects, the entire equipment system is CE certified, with metering accuracy meeting EN 206 and ISO 19720 international standards. It can directly interface with local regulatory systems, helping clients successfully pass project acceptance. Equipped with an industrial-grade PLC control system, it supports multi-language touch operation and has production data storage and traceability functions, recording the material ratio and operating parameters of each batch in real time, meeting the quality management requirements of high-end projects. Core vulnerable parts are all of SICOMA original specifications, and Haomei provides 24-hour remote technical support and global fast shipping services for core spare parts, ensuring long-term stable operation of the equipment.

From industry experience, concrete batching plants with SICOMA mixers have a significant brand advantage in bidding for high-end commercial concrete projects and large-scale infrastructure projects overseas, and the stability of the finished concrete quality is more recognized by owners. For clients seeking long-term stable operation and building a high-quality commercial concrete brand, this high-configuration solution is an excellent choice that balances performance, compliance, and service.
