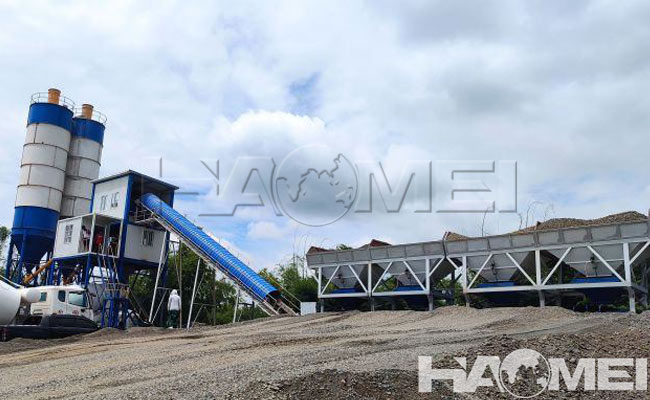

What Is Belt Conveyor Concrete Batching Plant?

Belt conveyor concrete batching plants are integrated systems that use belt conveyor systems to continuously transport raw materials such as aggregates and powders. Combined with a mixing unit, they complete the mixing, metering, and discharging of concrete. Their core advantages lie in high-efficiency conveying, stable continuous operation, and suitability for large-scale concrete production. Haomei Machinery's belt conveyor concrete batching plants (HZS series) are based on this principle, offering a wide capacity range of 60-240 m³/h and supported by a fully automated belt conveyor system. Specifically designed for infrastructure construction in Asia, Africa, Southeast Asia, and the Middle East, they have become the preferred equipment for commercial concrete companies and large-scale projects due to their high stability, low failure rate, and ease of maintenance.

The Haomei HZS series belt conveyor batching plants covering all scenarios from small and medium-sized commercial concrete plants to large-scale infrastructure projects. Our main models include the HZS60 (60m³/h), HZS90 (90m³/h), HZS120 (120m³/h), HZS180 (180m³/h), and HZS240 (240m³/h), equipped with JS1000, JS1500, JS2000, JS3000, and JS4000 twin-shaft forced mixers respectively. Each batch can mix 1.0-4.0m³, meeting the continuous production requirements of projects of varying scales. Based on 15 years of overseas project experience, we have found that the HZS90 and HZS120 concrete batching plant are the mainstream choices in the Middle East and Southeast Asia markets, suitable for urban complexes and highway construction; while the African market prefers the combination of the high cost-effectiveness of the HZS60 and the high capacity of the HZS180 to meet the needs of long-distance transportation and concentrated pouring.

Haomei's belt type concrete batching plant adopts a modular design and heavy-duty steel structure, consisting of five core modules: a batching system, a belt conveyor system, a mixing host, a dust removal system, and a control system, ensuring stable continuous operation.

The batching system features 4-6 individual metering bins, achieving precise proportions of aggregates, powders, water, and admixtures. Metering accuracy reaches ±2% for aggregates, ±1% for powders, and ±1% for liquids, solving the problem of concrete strength fluctuations caused by proportioning errors in traditional mixing plants.

The belt conveyor system uses a heavy-duty patterned conveyor belt with frequency conversion speed regulation, adjustable from 1.2-1.8 m/s. It is equipped with an anti-deviation device at the head and an automatic tensioning mechanism at the tail, adapting to harsh conditions such as high temperatures and dust storms. Compared to traditional bucket elevators, it improves efficiency by 30% and reduces the failure rate by 60%.

The mixing host adopts a twin-shaft forced-type design, with blades made of wear-resistant alloy material, boasting a service life of up to 8000 hours. Combined with a hydraulic door opening system, it ensures fast unloading with no residue, guaranteeing the uniformity and workability of the concrete.

Haomei's belt conveyor concrete mixing plant boasts core advantages in four key areas: high efficiency, environmental friendliness, intelligence, and durability, perfectly aligning with the engineering needs of emerging markets.

In terms of efficiency, the belt conveyor system enables continuous feeding, reducing feeding time by 30% compared to bucket elevators. Combined with an intelligent scheduling system, equipment utilization exceeds 85%, increasing daily production capacity by 25%.

Regarding environmental protection, it employs a dual system of pulse-jet baghouse dust collection and water mist dust suppression, achieving a dust emission concentration of ≤10mg/m³, meeting EU CE standards and suitable for regions with stringent environmental requirements such as the Middle East and Southeast Asia.

In terms of intelligence, it features a PLC control system and touchscreen operation, supporting remote monitoring, fault diagnosis, and data traceability, reducing reliance on specialized operators and making it particularly suitable for regions with a shortage of skilled personnel, such as Africa.

In terms of durability, key components utilize internationally renowned brands (such as Siemens motors and Schneider Electric), achieving an IP54 protection rating and stable operation in environments ranging from -10℃ to 50℃, capable of handling extreme conditions such as desert high temperatures and high-altitude low temperatures.

Haomei belt conveyor concrete mixing plants, with their high adaptability and reliability, are widely used in ready-mixed concrete production, highway bridges, high-rise buildings, water conservancy projects, airports, and ports, accumulating rich experience in markets across Asia, Africa, Southeast Asia, and the Middle East.

In the Jakarta-Bandung High-Speed Railway project in Indonesia, three sets of HZS180 concrete batching plants operated continuously for 18 months, with an average daily capacity of 1500 m³, ensuring the supply of high-strength concrete for precast track slabs.

In the construction of a new city in Saudi Arabia, five sets of HZS120 concrete batching plants, designed to withstand sandstorms, operated normally during sandstorms and met the concrete pouring requirements in high-temperature environments.

In a Nigerian real estate project, the HZS60 concrete batching plant, with its low energy consumption and ease of maintenance, became the preferred equipment for local small and medium-sized ready-mixed concrete enterprises.

From a technical perspective, the belt conveyor design is particularly suitable for conditions with large aggregate sizes and long transport distances, avoiding problems such as material jamming and wear in bucket elevators, and reducing maintenance costs by more than 40%.

Haomei's belt conveyor concrete batching plants, based on technological innovation and practical experience, address the pain points of efficiency, environmental protection, and durability in emerging market projects. Choosing Haomei means choosing stable production capacity, reliable quality, and professional service, safeguarding your engineering projects.
