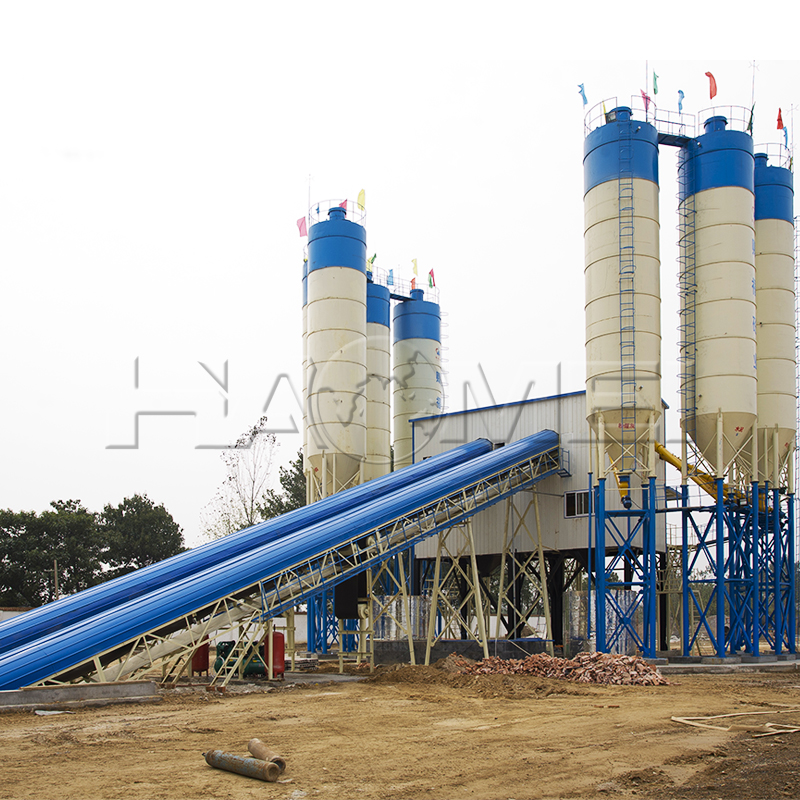

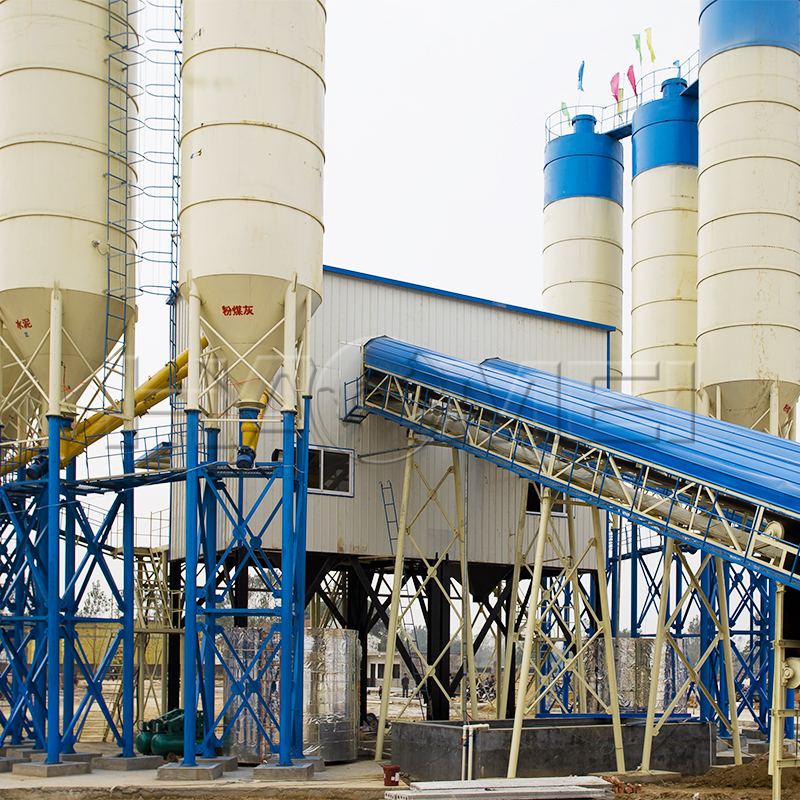

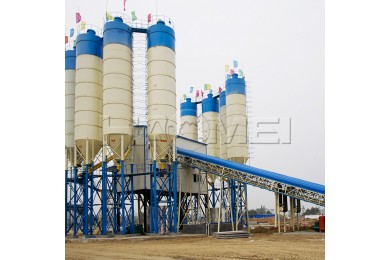

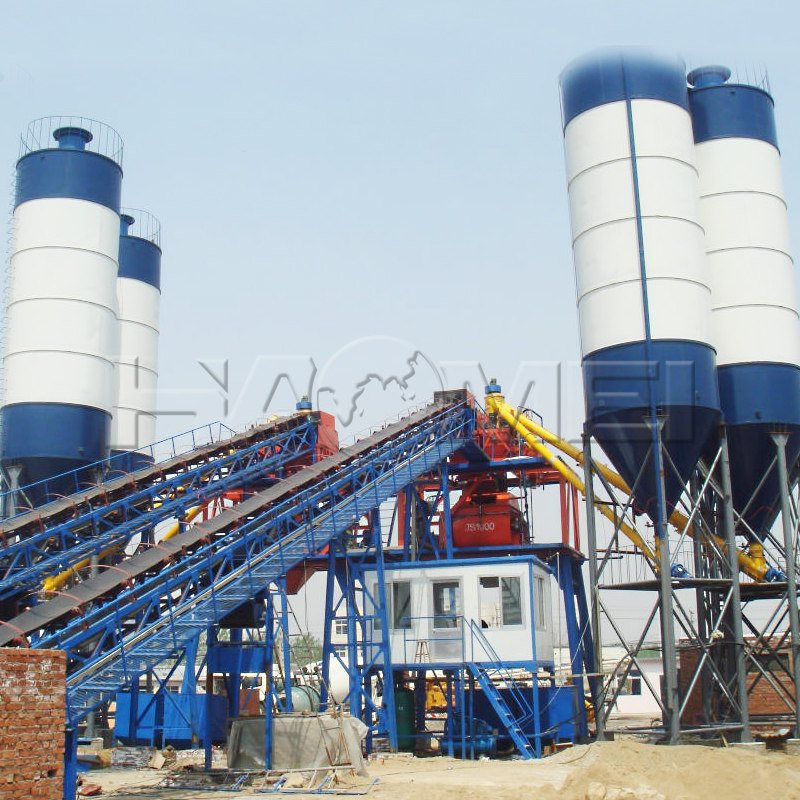

1. Description of HZS120 Concrete Batching Plant :
1. Ready Mix HZS120 Concrete Plant is easy to transport, install and debug more quickly.
2. HZS series of Concrete Batching Plant (Bin fed concrete mixing plant), also named as concrete batch plant, is developed by our company on the basis of adopting the world is sophisticated technologies.
3. As well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years.
2. Features of HZS120 Concrete Batching Plant:
1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed.
2. With modular structure design, easy to disassembly
3. Lubrication system adopts advanced centralized oil lubricating system, convenient to supply oil.
4. PC+PLC control system ensures the high reliability
5. Human-based intelligent control facilitates the operation greatly.

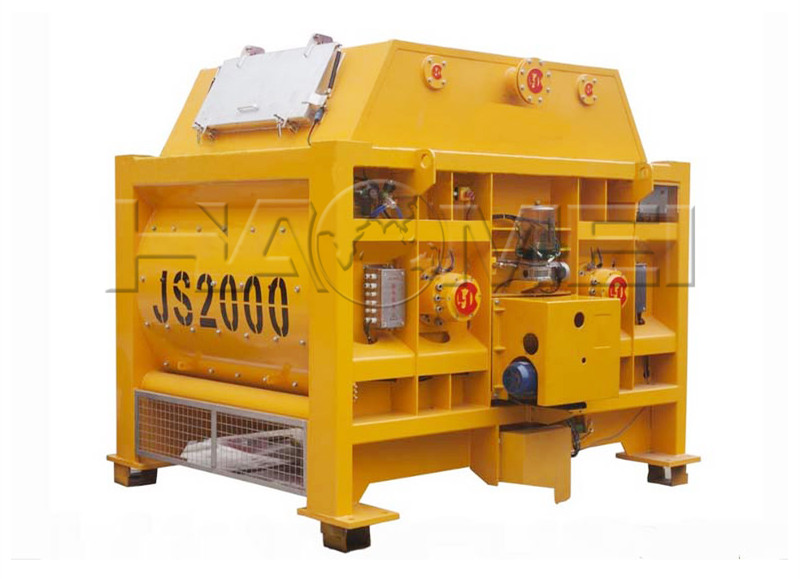

6. JS2000 twin shaft compulsory concrete mixer, with high mixing performance.
7. Suitable for large size construction projects.
3. The Technical Parameters of HZS120 Concrete Batching Plant:
|
Model |
HZS120 |
|
|
Specification |
Unit |
Value |
|
Productivity |
m3/h |
120 |
|
Capacity of Mixer |
m3 |
2 |
|
Mix Power |
kw |
74 |
|
Discharge Height |
m |
3.8 |
|
Aggregate Bin |
Quantity |
4 |
|
Aggregate Bin Capacity |
m3 |
3.2 |
|
Max. Weighing Value of Aggregate |
kg |
2x3000 |
|
Max. Weighing Value of Cement |
kg |
1200 |
|
Max. Weighing Value of Water |
kg |
600 |
|
Max. Weighing Value of Additive |
kg |
50 |
|
Aggregate Measuring Accuracy |
% |
±2% |
|
Water Measuring Accuracy |
% |
±1% |
|
Cement Measuring Accuracy |
% |
±1% |
|
Additive Measuring Accuracy |
% |
±1% |
|
Cement Silo |
_ |
Optional |
|
Cement Screw Conveyor |
_ |
Optional |
|
Cement Silo Capacity |
_ |
Optional |
|
Control Mode |
_ |
Auto/Semi Control |
