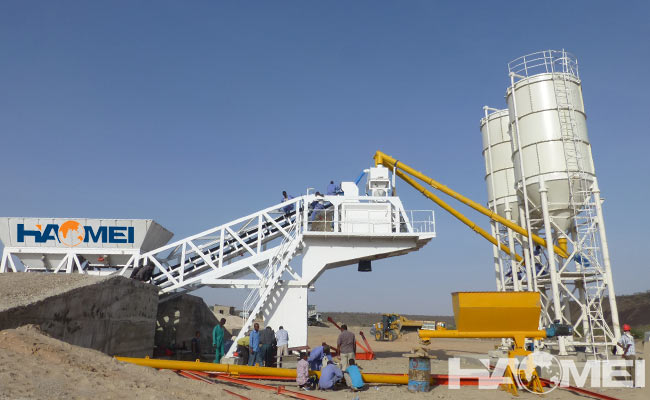

Mobile Ready Mixed Concrete Batching Plant

In the field of engineering construction, the flexibility and efficiency of concrete production directly impact project progress and cost control. Mobile ready mixed concrete batching plants are a new type of mixing equipment developed specifically to address this core need. Unlike traditional stationary concrete batching plants, the mobile ready mix concrete plants are characterized by "mobility and integration," enabling them to quickly adapt to different working conditions and demonstrating irreplaceable advantages in field operations and temporary projects. From a technical perspective, a mobile ready mixed concrete batching plant integrates core modules such as aggregate storage, batching, mixing, and control systems onto a towable chassis. It is a complete set of concrete mixing equipment that enables rapid site transfer and deployment via hydraulic or mechanical drive. Its core value lies in breaking the site limitations of stationary batching plants, achieving localized production and immediate supply of concrete.

Our mass-produced mobile ready mixed concrete batching plants are uniformly named using the YHZS series, with different sub-models corresponding to different output levels, forming a complete product matrix covering 25m³/h to 120m³/h. Among them, YHZS25, YHZS50 and YHZS75 are the mainstream models in the market, respectively suitable for the mobile production needs of small temporary projects, medium-sized municipal projects, and large-scale infrastructure projects. In terms of structural design, YHZS series mobile ready mix concrete plant adopts a modular integrated design. The core structure includes a foldable aggregate bin (single bin volume 8-15m³, supporting 3-4 bin configurations), a twin-screw conveyor batching system (metering accuracy ±1%), a JS series twin-shaft forced mixer (mixing drum speed 14-20r/min, mixing uniformity variation coefficient ≤5%), a hydraulic lifting system, and a PLC intelligent control system. Each module is connected by high-strength bolts, and the disassembly and assembly time can be controlled within 4-8 hours, significantly reducing site deployment costs. It is worth noting that the equipment chassis adopts a heavy-duty off-road traction design with a ground clearance of ≥350mm, making it suitable for transportation on highways and temporary construction site roads. No disassembly of core components is required during relocation, greatly improving operational flexibility.

Compared to traditional stationary concrete batching plants, the YHZS series mobile ready mixed concrete batching plant's technological advantages are concentrated in three dimensions:

First, deployment efficiency: no complex foundation construction is required; production can be quickly started after a leveled site, saving more than 60% of the initial preparation time compared to stationary concrete batching plants.

Second, production stability: the core mixing module uses wear-resistant alloy liners (service life ≥8000 hours), and the batching system is equipped with high-precision sensors and a closed-loop control system, ensuring that the strength deviation between different batches of concrete is ≤3%.

Third, ease of operation and maintenance: the equipment has reserved centralized lubrication interfaces and fault diagnosis modules, reducing daily maintenance workload by 40% compared to stationary equipment. Furthermore, the high versatility of key wear parts reduces spare parts inventory costs.

In practical applications, mobile ready mixed concrete batching plant has been widely used in highway and railway emergency repairs, bridge construction, rural revitalization infrastructure projects, and temporary housing construction. Its advantages in low-temperature start-up (normal operation at -20℃) and dust-proof design (dust emission concentration ≤10mg/m³) have been fully validated in highway construction projects in the arid Northwest region.

Regarding pricing, the price of the YHZS series mobile ready mixed concrete batching plants varies depending on the configuration. The basic YHZS25 model is priced at US$85,000-102,000, the mainstream YHZS50 model at US$158,000-186,000, and the high-end YHZS120 model at US$325,000-368,000. The price includes the core mixing module, control system, traction chassis, and basic spare parts, but excludes transportation, installation, and commissioning costs. Configurations such as aggregate bin capacity and dust removal system level can be customized according to customer requirements.

The YHZS series mobile ready mixed concrete batching plant achieves a balance between flexibility and production efficiency through structural optimization and technological innovation, providing an economical and reliable solution for concrete production needs that require mobile operation. This is the core reason why it has gained recognition in infrastructure projects in many countries around the world.
