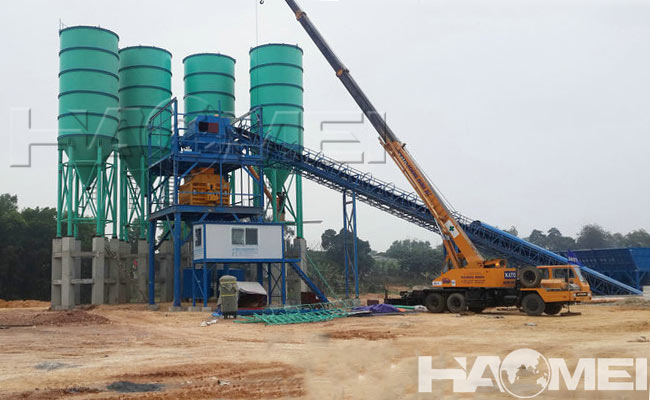

Precast Concrete Manufacturing Plant HZS Series

In the industrialization of precast concrete components, the stability, proportioning accuracy, and production efficiency of the concrete batching plant directly determine the component quality and project delivery cycle. As a professional manufacturer deeply involved in concrete batching plant manufacturing and export, our HZS series precast concrete manufacturing plants, based on years of technological accumulation, have been specifically optimized for the high-grade, high-consistency, and multi-batch characteristics of precast component production, forming a core competitive advantage that combines technological barriers and practical value.

The technological iteration of the core mixing system is the core competitiveness of the HZS series precast concrete manufacturing plant. We adopt a twin-shaft forced concrete mixer, with the mixing shaft speed optimized to 30 r/min. Combined with a blade layout designed using fluid dynamics simulation, this creates a three-dimensional mixing trajectory for the material within the mixing chamber, achieving a mixing uniformity variation coefficient ≤5%, far exceeding the industry standard requirement of 8%. For the C50-C80 high-grade concrete commonly used in precast components, the main unit is equipped with wear-resistant alloy liners and reinforced mixing arms. The liner service life can reach over 8000 hours, a 40% improvement over conventional products, effectively reducing equipment maintenance costs in high-frequency production. It is worth noting that we have equipped the mixing system with an intelligent temperature control module, which can automatically adjust the mixing water temperature (5-60℃) according to the ambient temperature, ensuring that the initial strength of the concrete meets the standards in low-temperature seasons. This feature is particularly outstanding in applications in precast component plants in cold regions.

The precise batching and intelligent control system constitutes the quality assurance system of the HZS series precast concrete manufacturing plant. This series adopts a four-compartment independent metering design, with aggregate metering accuracy of ±1% and cement, fly ash, and other powder metering accuracy of ±0.5%, fully meeting the stringent requirements of precast components for concrete mix proportions. In terms of the control system, we have equipped it with a self-developed PLC intelligent control system, supporting more than 1000 preset formulas. It can quickly switch concrete production parameters for different components (such as precast composite slabs, PC beams and columns), and also has a real-time data traceability function. Key parameters such as batching data, mixing time, and outlet temperature during the production process can be recorded and retained throughout, facilitating subsequent quality traceability and production optimization. Furthermore, the system supports remote monitoring and fault early warning. Maintenance personnel can monitor equipment operating status in real time via mobile devices, predict wear and tear on vulnerable parts in advance, and reduce equipment downtime for maintenance by more than 30%.

The modular design and adaptability of the HZS series concrete manufacturing plant make it more suitable for global export needs. Considering the site conditions and production capacity requirements of prefabrication plants in different regions, this series adopts a modular design, with core components disassembled into standard container sizes. This reduces transportation costs by 25%-30% compared to integrated concrete mixing plants, and the on-site installation and commissioning cycle can be controlled within 7-15 days. Production capacity ranges from 25m³/h to 180m³/h, and can be flexibly configured according to the customer's prefabricated component production volume, adapting to both small prefabricated component plants' batch production and large-scale operations in large PC component bases. Meanwhile, we can customize the equipment according to the voltage standards (110V-480V) and environmental requirements (such as European standard EN15048 and American standard ASTM C94) of the export destination, equipping it with a pulse bag filter with a dust collection efficiency of 99.8% and a wastewater recycling system to ensure that the equipment complies with local environmental regulations.

From actual application data, a precast component factory in Southeast Asia saw a 20% increase in single-shift precast component output and a concrete strength qualification rate increase from 92% to 99.5% after adopting the HZS120 concrete batching plant. In a project in a cold region of Northern Europe, the HZS90 concrete mixing plant maintained stable production at -20℃, ensuring the continuity of winter construction. These practical cases demonstrate the reliable performance of the HZS series precast concrete manufacturing plant under different working conditions and highlight our core strength as a manufacturer in technological research and development and product optimization. For customers who pursue high-quality precast component production, the HZS series precast concrete mixing plant is not only production equipment but also an important support for enhancing core competitiveness.
