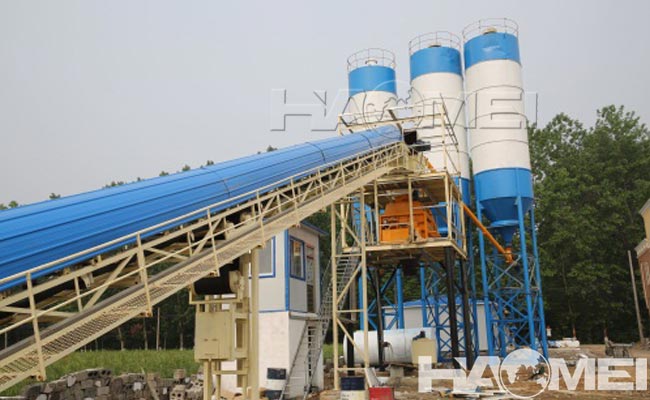

Concrete Batching Plant JS2000

As a concrete batching plant manufacturer with years of experience in engineering projects, we added a concrete batching plant for a municipal renovation and expansion project in the Middle East at the end of last year. We ultimately selected the Haomei Machinery HZS120 concrete batching plant equipped with a JS2000 twin-shaft forced concrete mixer. After six months of full-load operation, the concrete batching plant JS2000 has exceeded expectations in terms of production capacity stability, mixing quality, and maintenance costs, making it a highly cost-effective choice for medium-sized mass production scenarios.

From the core parameters, the JS2000 mixer is recognized in the industry as the standard main mixer for HZS120 concrete batching plants, with mature configuration and solid parameters. This main mixer has a nominal discharge capacity of 2000L/batch and a feed capacity of 3200L. It comes standard with dual 37kW drive motors and adopts a reverse synchronous twin-shaft mixing structure. The standard mixing cycle is stable at 60 seconds, corresponding to a theoretical production capacity of 120m³/h for the entire batching plant, making it a mainstream mass production configuration for medium-sized infrastructure and commercial concrete plants. It is compatible with crushed stone with a maximum particle size of 100mm and gravel with a maximum size of 120mm, and can produce various types of finished materials such as ordinary concrete, pumped concrete, and impermeable concrete, covering the needs of most engineering construction projects. Metering accuracy was our core evaluation indicator during the selection process. The measured dynamic metering error of aggregates is consistently within ±2%, and the metering error of cement, water, and admixtures is ≤±1%, fully complying with international concrete construction specifications. No quality problems caused by mix proportion deviations have occurred in the six months since its operation began.

Actual production performance is the core standard for evaluating the value of the equipment. With a tight project schedule, the equipment has maintained continuous operation for 16-18 hours per day, with a stable daily output of 1800-2000 cubic meters, exceeding 2200 cubic meters during peak construction periods. The capacity redundancy is sufficient, and it has never hindered the project schedule. The mixing homogeneity is excellent, with the concrete mortar density variation coefficient lower than the industry average, and the strength qualification rate of C30 to C45 grade concrete reaching 100%. Designed for the harsh working conditions of the Middle East, characterized by high temperatures and sandstorms, JS2000 concrete mixer features a multi-layered sealing structure at the shaft end to effectively prevent sand and dust intrusion. The wear rate of the high-manganese steel wear-resistant liners and mixing blades is significantly lower than that of similar equipment we previously used. Based on the current wear rate, the service life of vulnerable parts is estimated to exceed 8000 hours, greatly reducing the frequency and cost of downtime for replacements.

Another key reason for choosing Haomei Machinery was mature export support capabilities. The entire equipment is CE certified, ensuring smooth customs clearance. Its modular structure perfectly adapts to standard container shipping, and the on-site assembly cycle was shortened by 3 days compared to our expectations. Our remote installation guidance and 24-hour technical response mechanism effectively addressed the pain point of insufficient professional technicians at overseas construction sites. Original parts can be quickly sourced from its overseas warehouses, eliminating the need to wait for the long domestic shipping cycle and significantly reducing downtime costs.

Overall, the JS2000 concrete mixer, as the standard main unit for a HZS120 concrete batching plant, avoids redundant fancy features, focusing all costs on core performance, precisely matching the mass production needs of medium to large-scale projects. For overseas infrastructure projects and small to medium-sized commercial concrete plants, a stable, efficient, and hassle-free main production equipment is required. This configuration is well worth considering. Choosing a source manufacturer like Haomei Machinery, which has mature export service capabilities, can save a lot of hidden costs and communication troubles later on.
