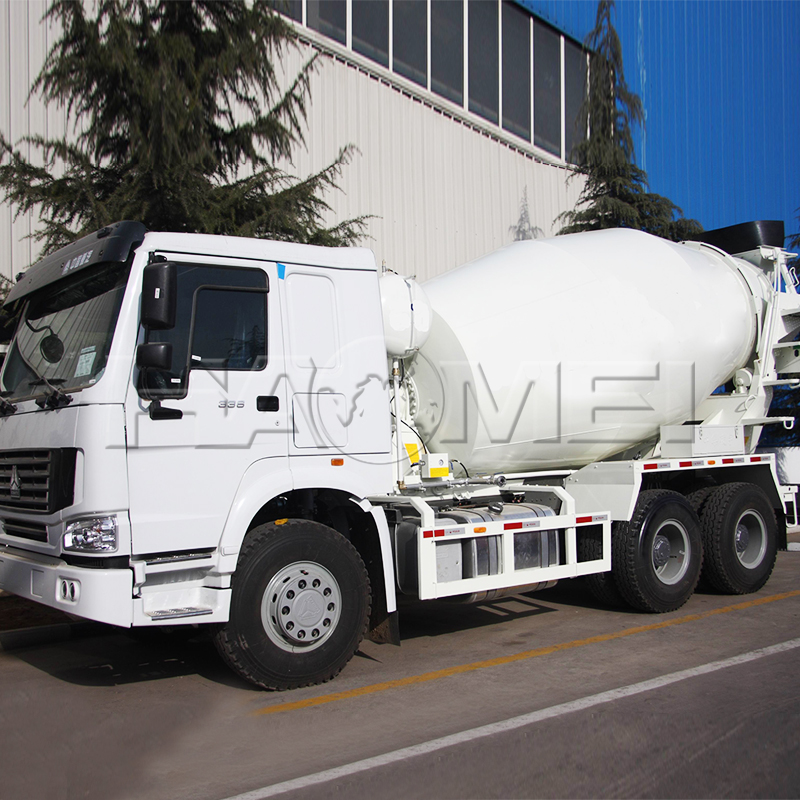

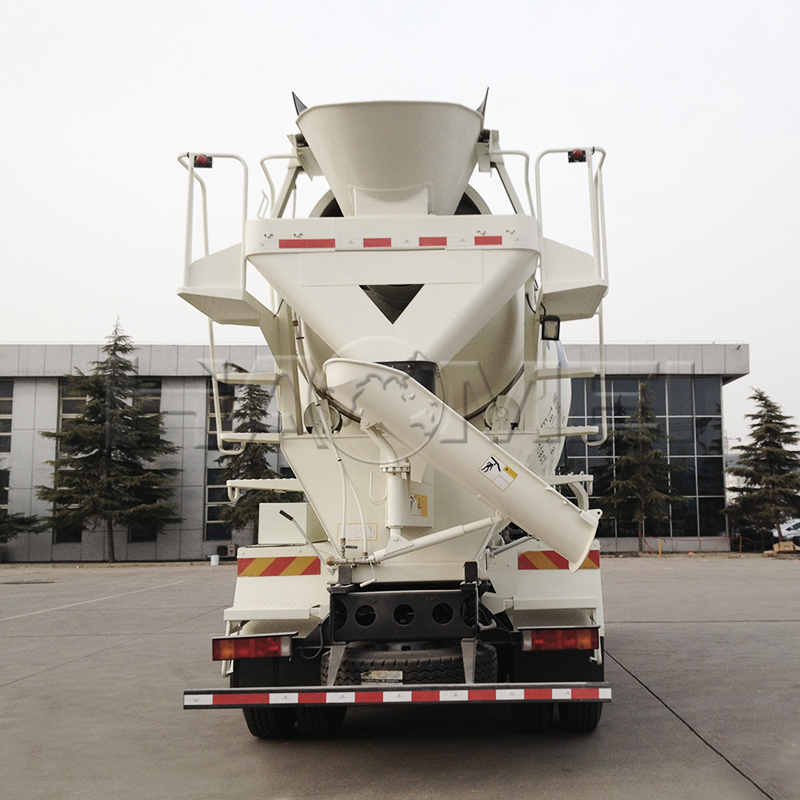

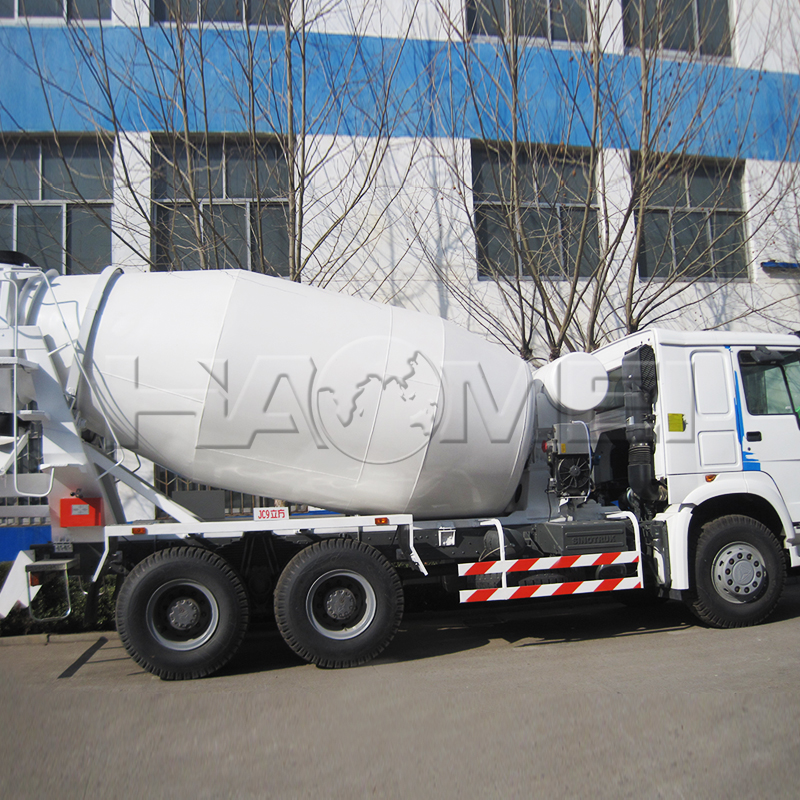

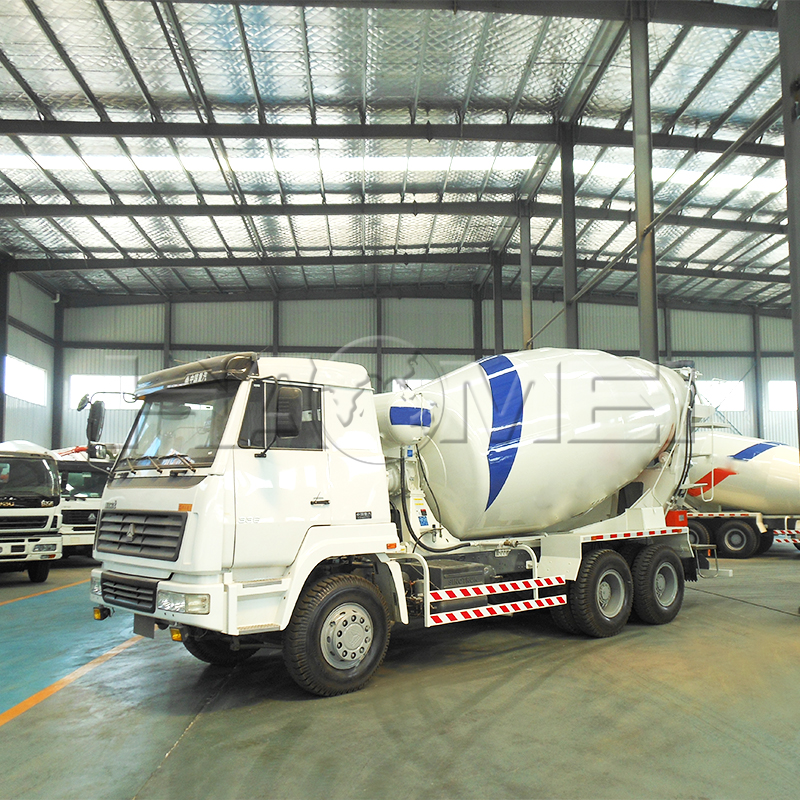

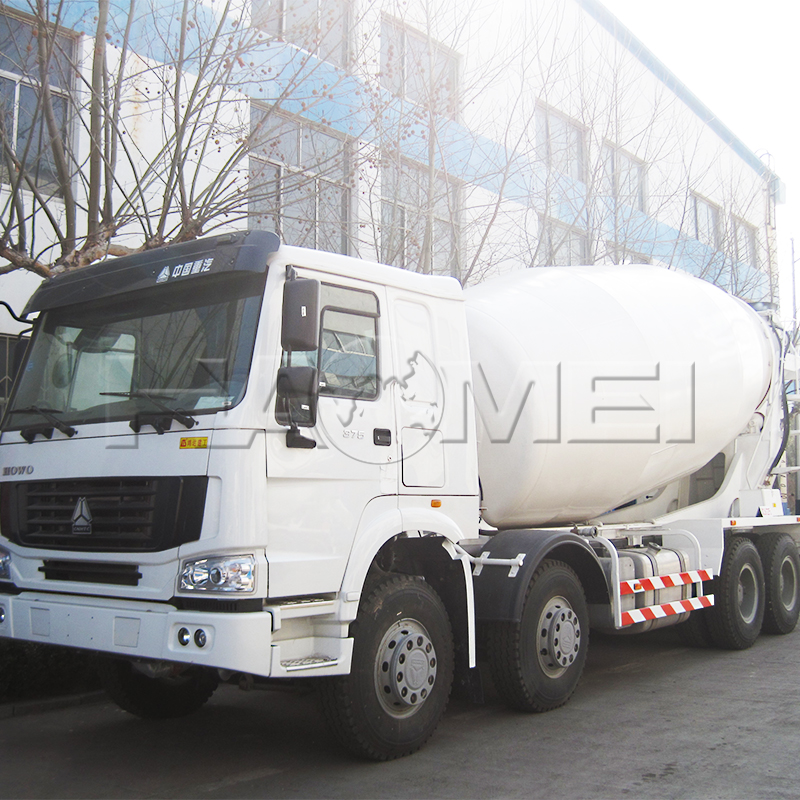

1. The Description of HM9-D Concrete Mixer Truck:
1. HAOMEI serial Concrete Truck Mixer is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured, effectively delay concrete coagulations, avoid concrete stratification and eduction, and ensures construction quality and speed.
2. Haomei Concrete Truck Mixer(concrete mixer truck) has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.
2. The Features of HM9-D Concrete Truck Mixer :
1. Featuring better wear-resistance and long service life
2. Optimized mixing blades, low material residue
3. High-quality parts, reliable running
3. Technical parameters:
|
Model |
HM9-D |
|
|
Specification |
Unit |
Value |
|
Mixing Capacity |
m³ |
9 |
|
Tank Volume |
m³ |
14.7 |
|
Feeding Speed |
m³/min |
≥3.5 |
|
Discharging Speed |
m³/min |
≥3 |
|
Residual Ratio of Discharging |
% |
≤0.5% |
|
Water Supply System |
|
Air pressure |
|
Water Tank Volume |
L |
300 |
|
Overall Dimension |
mm |
9050*2496*3750 |
|
Chassis Model |
|
HOWO |
|
Clutch |
φ |
φ430 Monolithic dry type |
|
Min Ground Clearance |
mm |
314 |
|
Max Speed |
km/h |
90 |
|
Engine Max Output Power |
kw |
276 |
|
Emission Standard |
|
Euro Ⅲ |
|
Rated Load |
kgs |
13500 |
|
Overall Weight |
kgs |
25000 |
|
Wheelbase |
mm |
3825+1350 |
