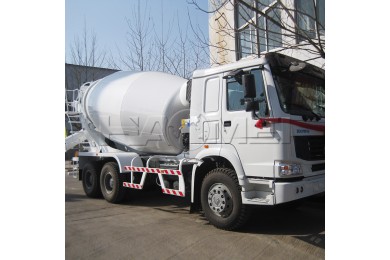

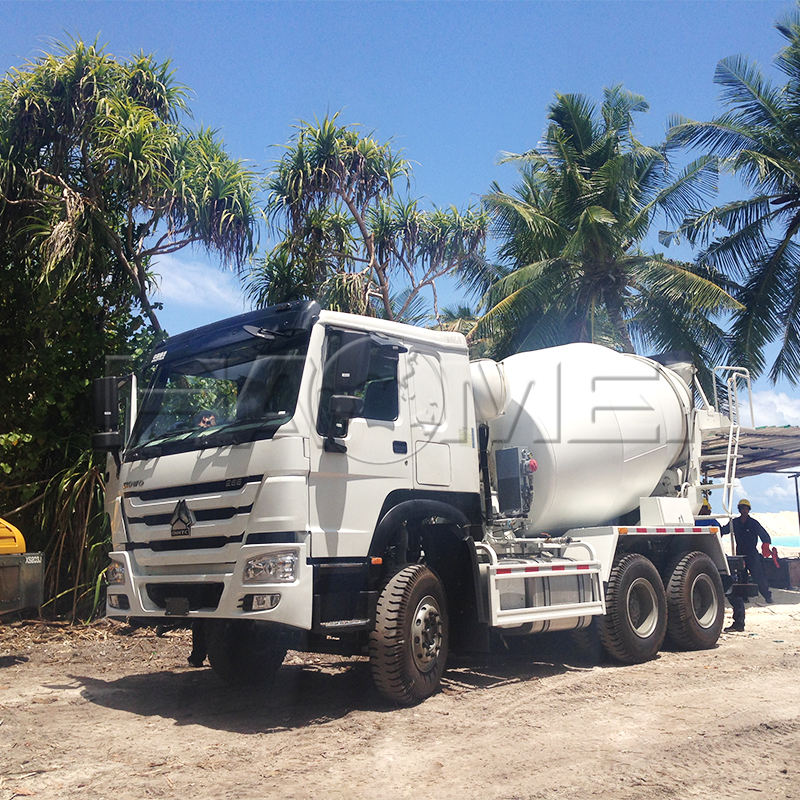

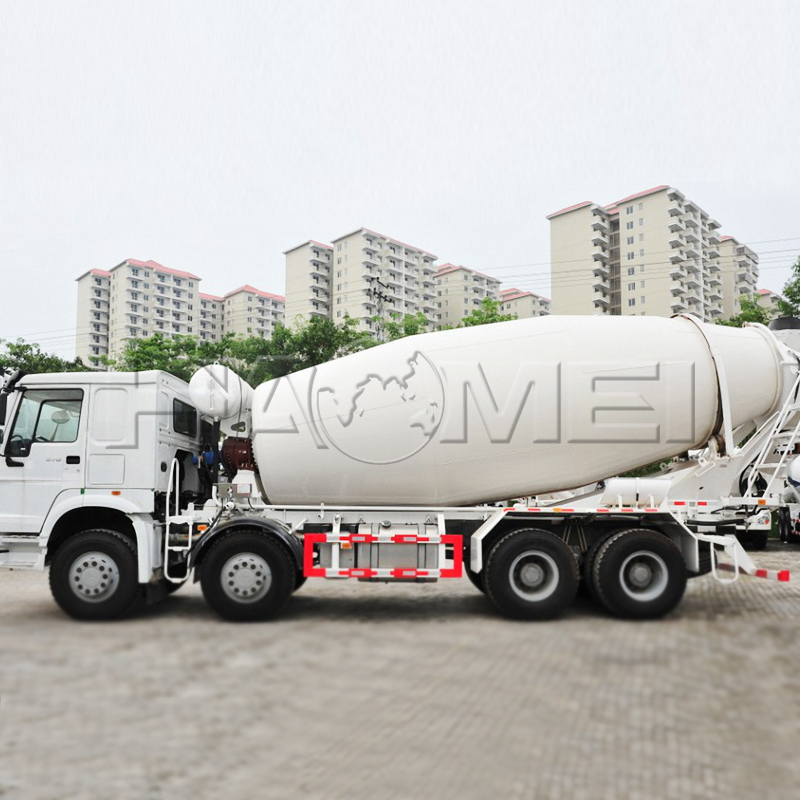

1. The Description of HM16-D Concrete Mixer Truck :
Concrete mixer truck is used to transport concrete; The concrete mixer truck are cylindrical device on the mixing tube to carry the ready mixed concrete. During transport the concrete mixer truck will always keep stirring drum rotation to ensure the delivery of concrete not to be solidified. After finishing delivering the concrete, the operator usually rinse inside the mixing tube to prevent hardening of concrete space.
2. Technical parameters:
|
Model |
HM16-D |
|
|
Specification |
Unit |
Value |
|
Mixing Capacity |
m³ |
16 |
|
Tank Volume |
m³ |
24.1 |
|
Feeding Speed |
m³/min |
≥3.5 |
|
Discharging Speed |
m³/min |
≥3 |
|
Residual Ratio of Discharging |
% |
≤0.5% |
|
Water Supply System |
|
Air pressure |
|
Water Tank Volume |
L |
400 |
|
Overall Dimension |
mm |
10850*2496*3980 |
|
Chassis Model |
|
HOWO |
|
Clutch |
φ |
φ430 Monolithic dry type |
|
Min Ground Clearance |
mm |
245 |
|
Max Speed |
km/h |
90 |
|
Engine Max Output Power |
kw |
340 |
|
Emission Standard |
|
Euro Ⅲ |
|
Rated Load |
kgs |
16600 |
|
Overall Weight |
kgs |
31000 |
|
Wheelbase |
mm |
1800+3600+1350 |
