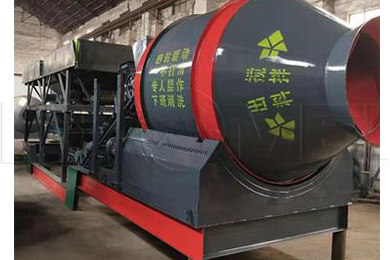

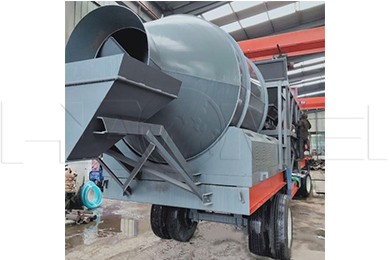

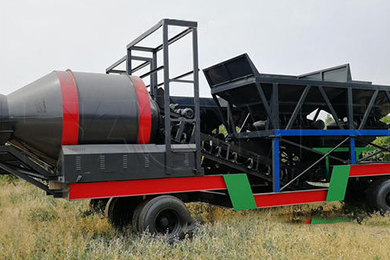

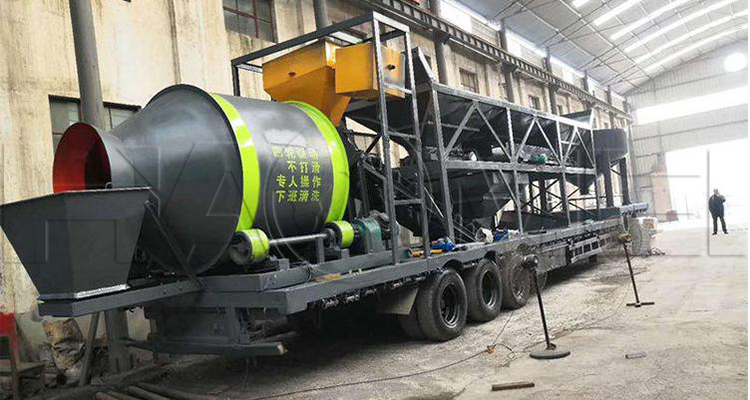

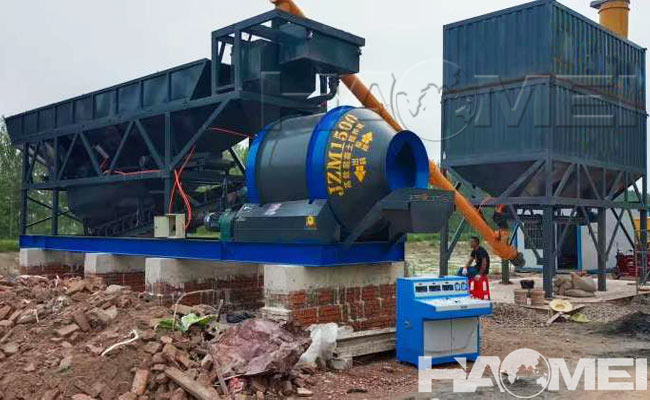

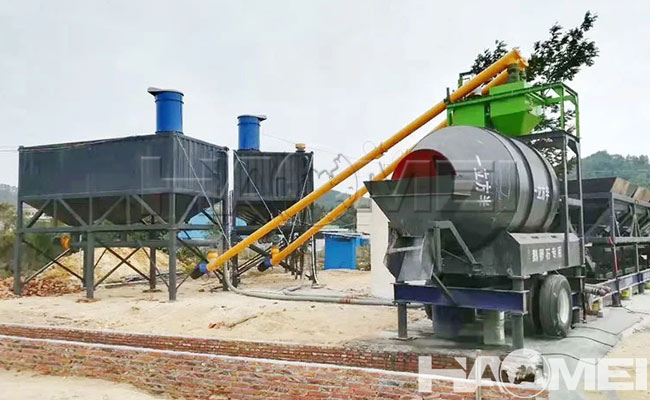

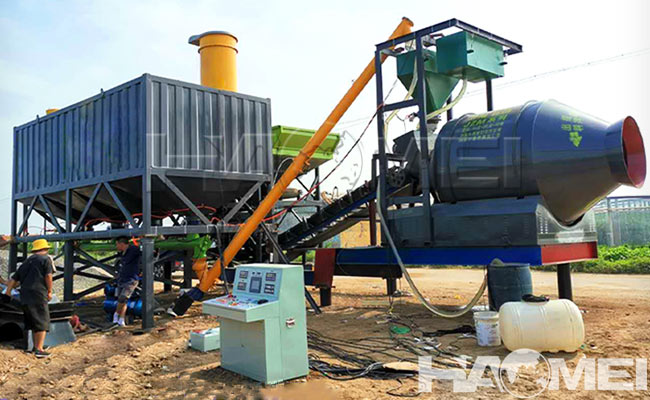

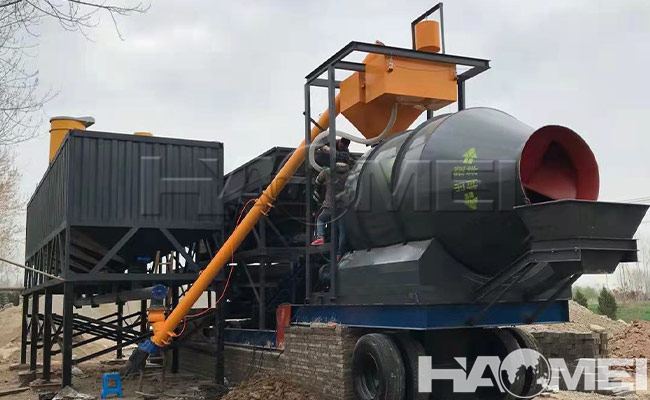

Drum mobile concrete batching plant

Drum mobile concrete batching plant

TAG:
Product number:SN20200827154956402
Market Price:$12000.00
Buying price:$12000.00
Order Enquiry
Photos View
Description

A drum mobile concrete batching plant is a movable concrete mixing plant equipment. Through clever design, the batching system, weighing system, mixing host, material storage, unloading and automatic control system of the mixing station are equipped in a trailer unit, and the movement of the mixing station is realized through a trailer.

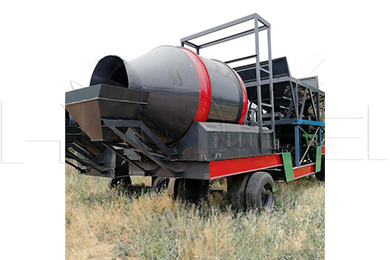

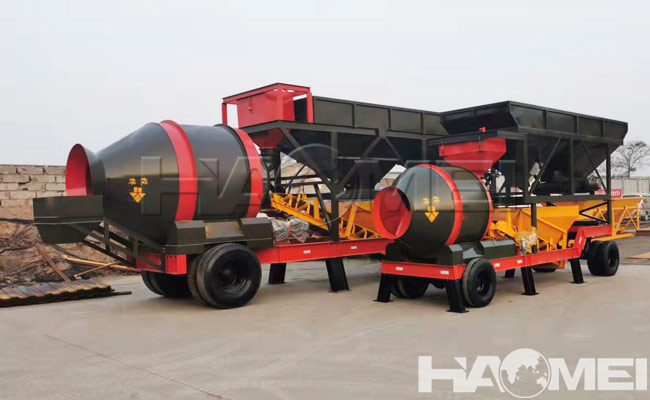

Structure of Drum Mobile Concrete Batching Plants

1. Concrete mixer chassis: a cantilever-shaped mixing main engine chassis, which contains tow truck traction pins and parking legs; The weighing scale of mixer, cement and water admixture is placed on the chassis; inspection walking platform, railing, etc. are attached to the periphery.

2. Control room: The control room is located at the bottom of the main chassis, and is equipped with a fully automatic mixing plant control system that is the same with that of a stationary concrete batching plant. The control room is used as the front supporting point of the whole station when it is working, and the control room is stowed and stored in the bracket during site transfer, and all control lines do not need to be disassembled.

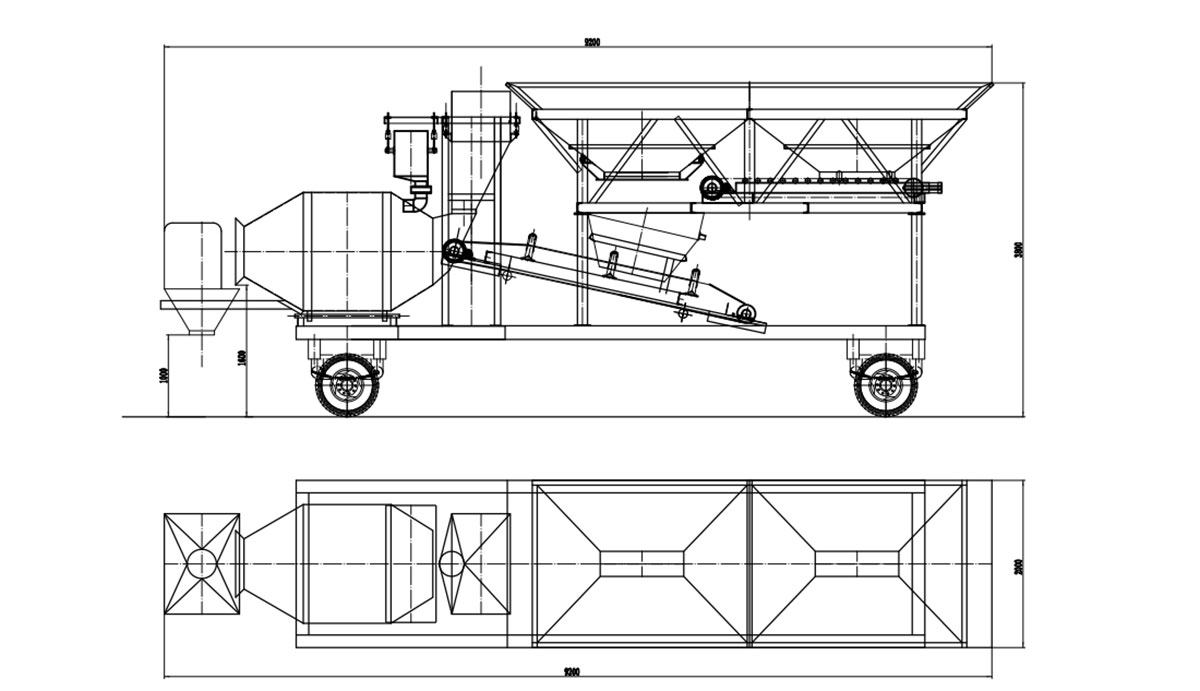

Drum mobile concrete batching plant structure

3. Aggregate batching measurement: this system is located at the back end of the whole station. The upper part is an aggregate (sand, stone) storage hopper. The storage hopper can be divided into 2 or 4 grids, and a heightening plate is set to increase the storage capacity. Pneumatically open the door in sequence, and the aggregate is measured in cumulative measurement of a variety of materials. The bottom is equipped with a walking rear axle and frame legs for working.

4. Belt conveyor frame: This frame is a truss structure connecting the mainframe chassis and the aggregate batching frame. It is equipped with a belt frame; the main frame, belt frame and batching frame are combined to form the main structure of the entire mobile mixing plant

5. Peripheral parts: the cement silo and screw conveyor. The peripheral parts are integral parts regardless of working or transportation states, so they can be transported and disassembled as a whole without disassembly.



Technical Parameters

Model

YHZ35

YHZ60

YHZ90

YHZ120

Capacity

35m3/h

60m3/h

90m3/h

120m3/h

Concrete mixer

JZM750

JZM1000

JZM1500

JZM2000

Batching machine

PLD1200

PLD1600

PLD2400

PLD3200

Charging capacity

1200kg

1600kg

2400kg

3200kg

Output capacity

750L

1000L

1500L

2000L

Weighing capacity

1200kg

1600kg

2400kg

3200kg

Drum rotation

27r/min

27r/min

27r/min

27r/min

Aggregate size

80-120mm

80-120mm

80-120mm

80-120mm

Aggregate type

2/3/4

2/3/4

2/3/4

2/3/4

Batching accuracy

±5%

±5%

±5%

±5%

Application Fields

Drum mobile concrete batching plants are the best concrete mixing plant model for road, railway, bridge, port, hydropower and other projects.

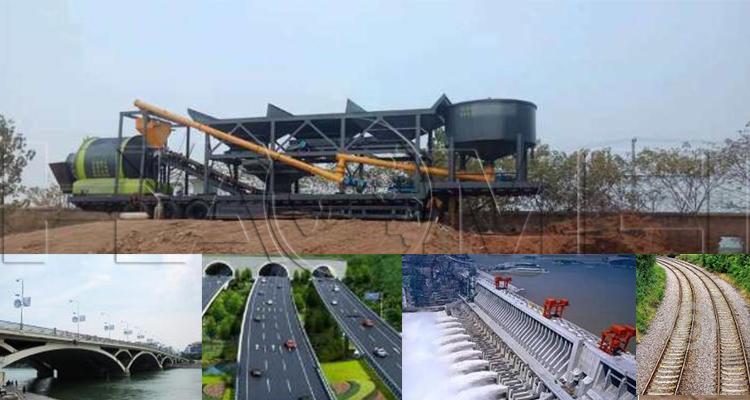

Drum mobile concrete batching plant application

1. Railway

High degree of automation and high production efficiency make production and processing easy and efficient.

2. Highway

High mixing quality and short cycle time. It is an essential mechanical equipment in road construction.

3. Bridge construction

The triple superiority makes it irreplaceable in bridge construction.

4. Water conservancy construction

Convenient operation and stable operation make water conservancy construction more convenient.

5. Port and dock facilities



A simple mixing station is formed to make port and wharf construction easier.
