HZS25 Concrete Batching Plant

HZS25 Concrete Batching Plant

TAG: concrete batching plant concrete mixing plant HZS25 concrete mixing station
Product number:SN20180502120123799
Market Price:$30000.00
Buying price:$25000.00
Order Enquiry
Photos View
Description

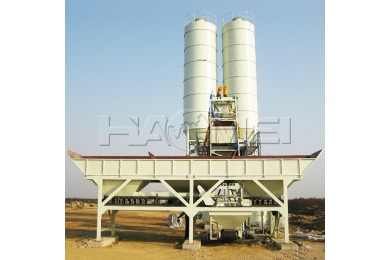

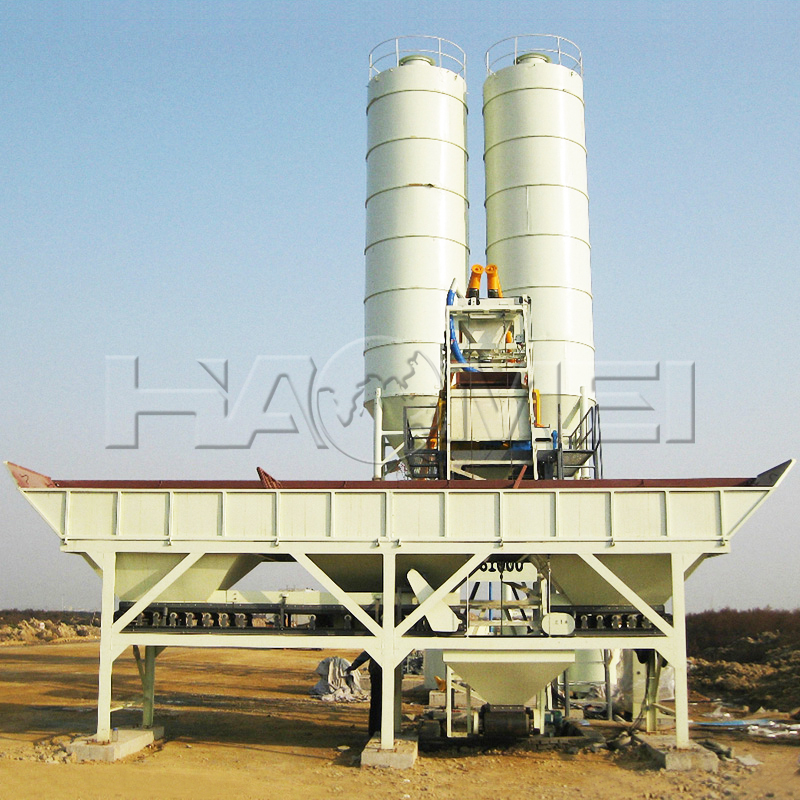

1. The Description of HZS25 Concrete Batching Plant

1. HZS25 batching plant is one of the small-sized plant series of HAOMEI company.

2. It is full-automatic concrete mixing block composed by feeding, batching, mixing, electrical control and steel structure components, suitable for small-scale construction projects, precast yard and commercial concrete companies.

3. All walks of life in the popular phrase, always be imitated but never beyond.

hzs25 concrete batching plant

2. The Introduction of HZS25 Concrete Batching Plant Components:

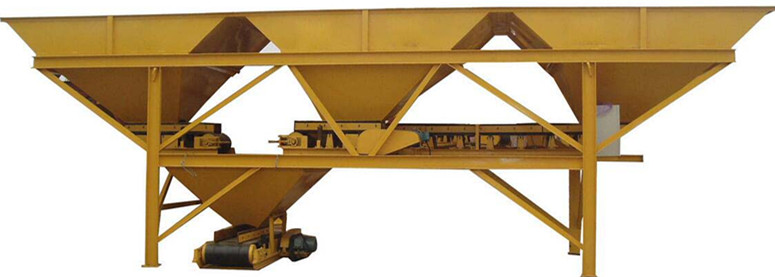

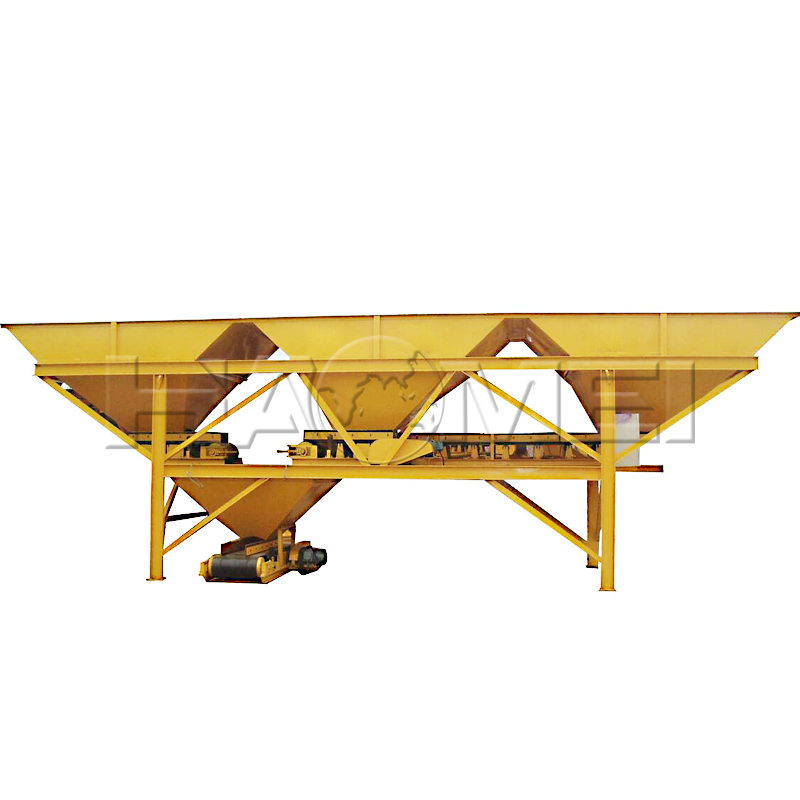

1). Aggregate Batching Machine

1.1. This series of products adopt electronic weighing, digital display.

1.2. It has the features of accurate weighing, high batching accuracy, fast speed, strong controlling ability, simple operation, reasonable design, compact structure and long service life.

1.3. Widely used in all kinds of large and medium sized construction project and concrete mixing station.

aggregate batching machine

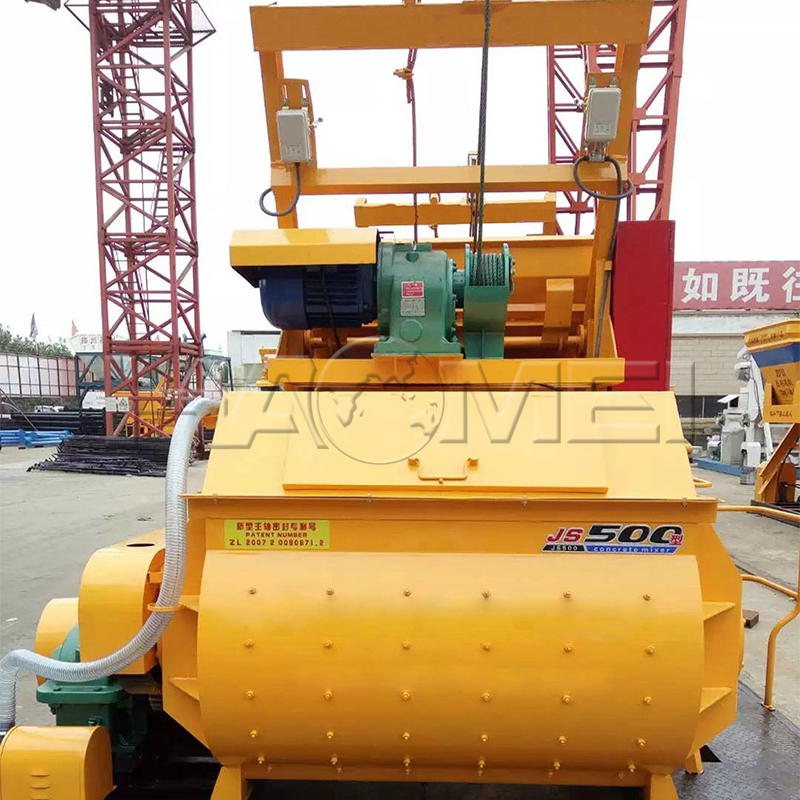

2). Batching Machine JS500

2.1. Shaft end sealing adopts pressure difference and multi-heterodyne sealing technology to extend shaft ends service life.

2.2. National patented taper mixing arm

2.3. National patented monitoring system to control every part of mixer

2.4. Advanced hydraulic pressure system is adopted to open and close the discharging door.

2.5. Lubrication system to make the mixer service a long life.

2.6. Water spraying by multiple tube and circuit system.

js500 concrete mixer

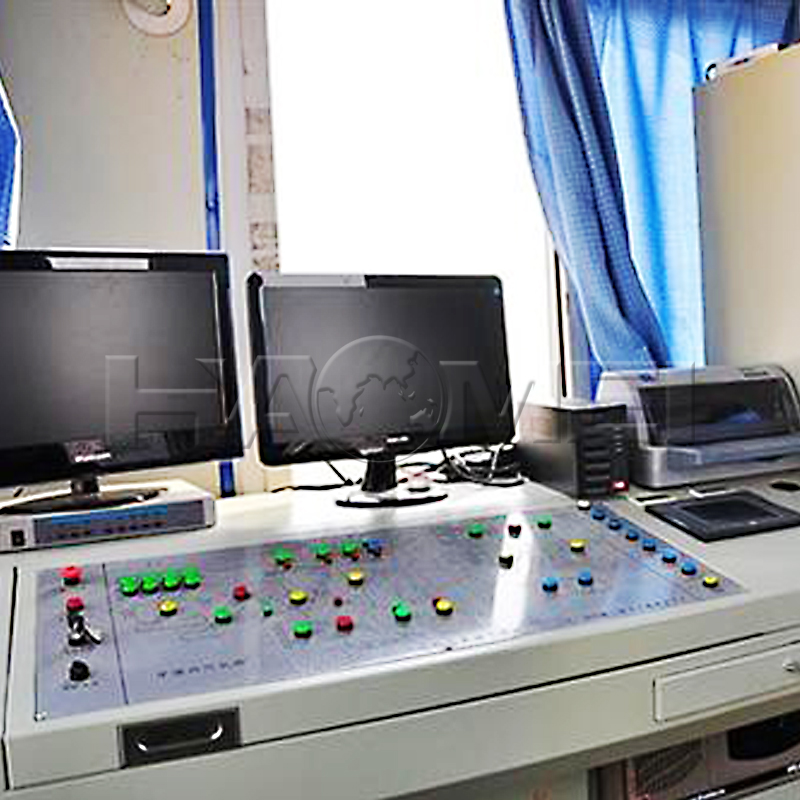

3). Control System

3.1. Realize the material metering station, transporting mixing, unloading of automatic production with function of real-time data processing the system can automatic control, which can also be manual operation, the operation is simple and convenient.

3.2. Computer control interface simulation screen shows the whole dynamic process of station, intuitive and clear. It can store various proportioning and mixing station working data, print all kinds of report data as required.

3. Short Features of HZS25 Concrete Batching PLant:

1. International popular modular structure

2. Adapt and apply for the most advanced technologies

3. The mixing system with excellent mixing performance

4. Main electrical components from Germany SIEMENS

5. Suitable for small-scale construction project

4. The Technical Parameters of HZS25 Concrete Batching Plant:

Model

HZS25

Specification

Unit

Value

Productivity

m3/h

25

Capacity of Mixer

m3

0.5

Mixer Power

kw

18.5

Discharge Height

m

3.8(for customers choice)

Aggregate Bin

Quantity

3

Aggregate Bin Capacity

m3

0.8

Max. Weighing Value of aggregate

kg

1500

Max. Weighing Value of cement

kg

300

Max. Weighing Value of water

kg

150

Max. Weighing Value of additive

kg

40

Aggregate Measuring Accuracy

%

2

Water Measuring Accuracy

%

1

Cement Measuring Accuracy

%

1

Additive Measuring Accuracy

%

1

Cement Silo

_

Optional

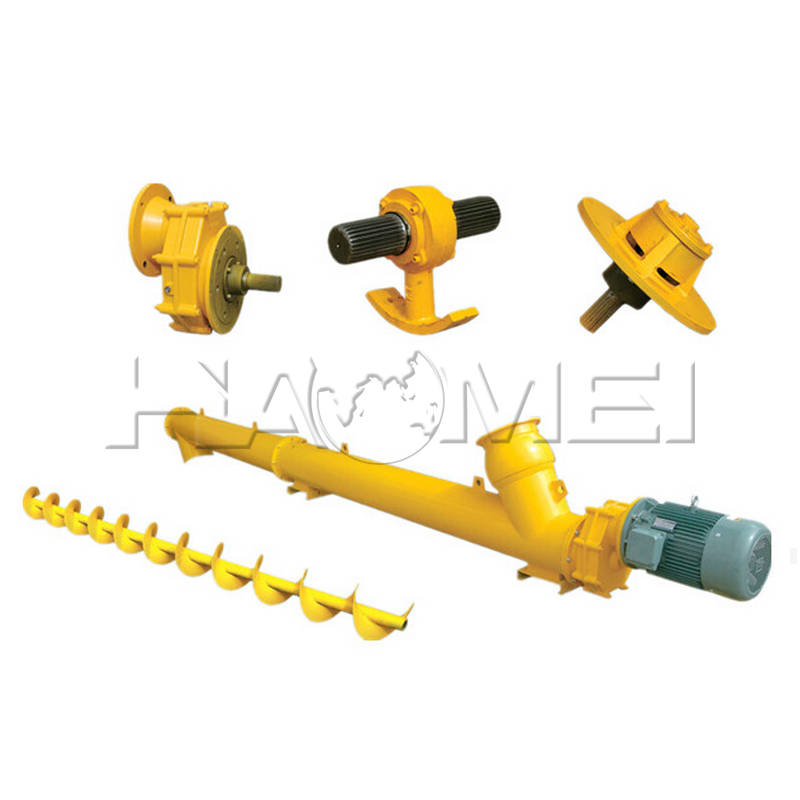

Cement Screw Conveyor

_

Optional

Cement Silo Capicity

_

Optional

Control Mode

_

Auto/Semi control
