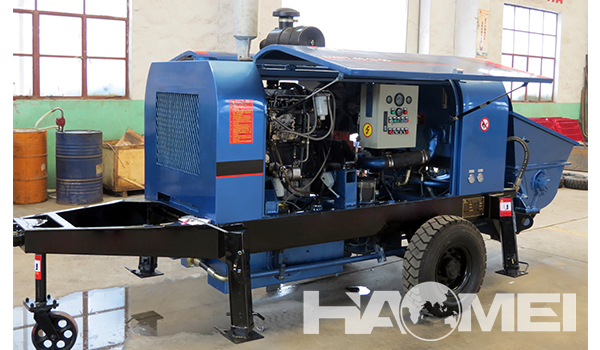

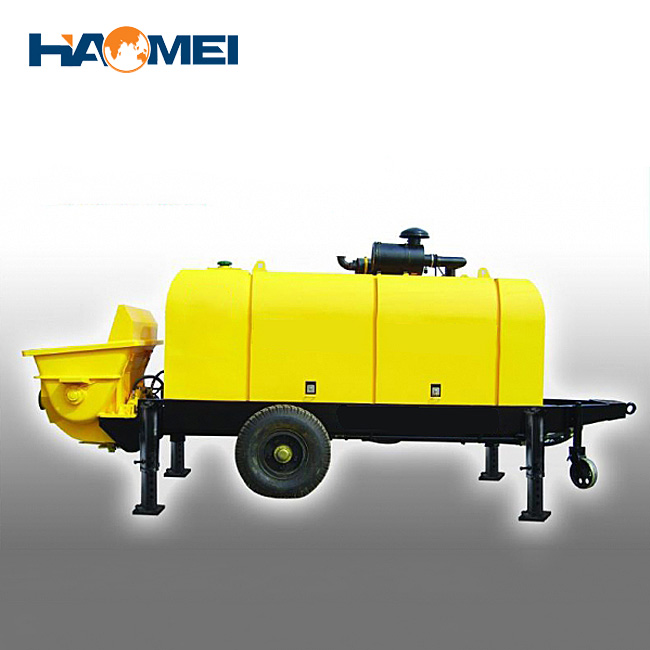

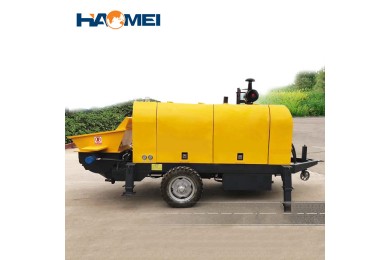

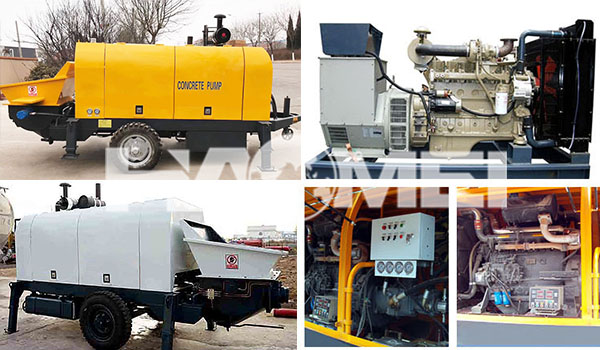

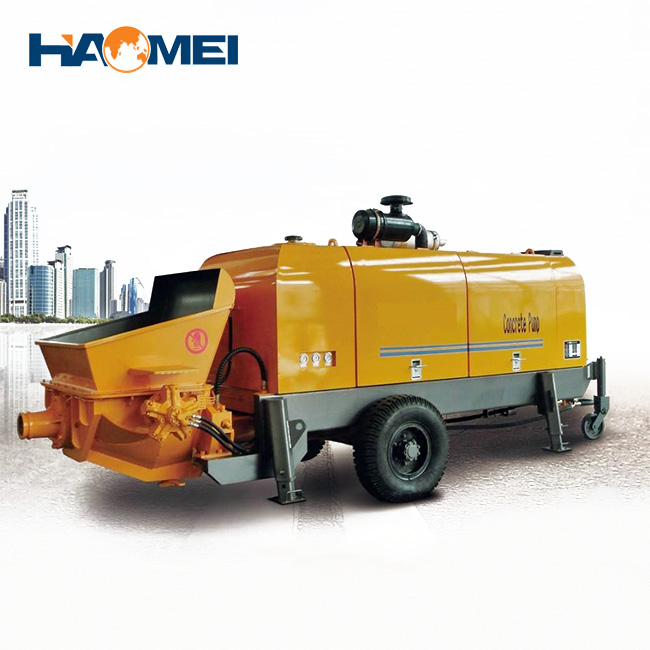

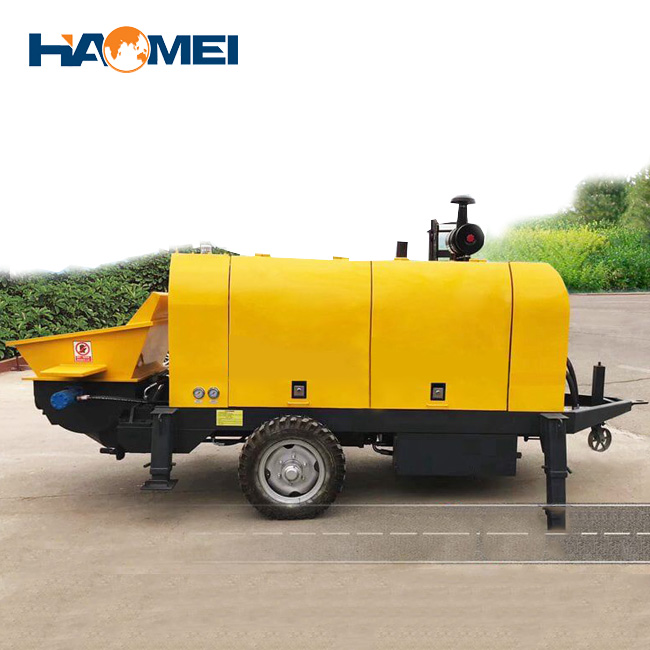

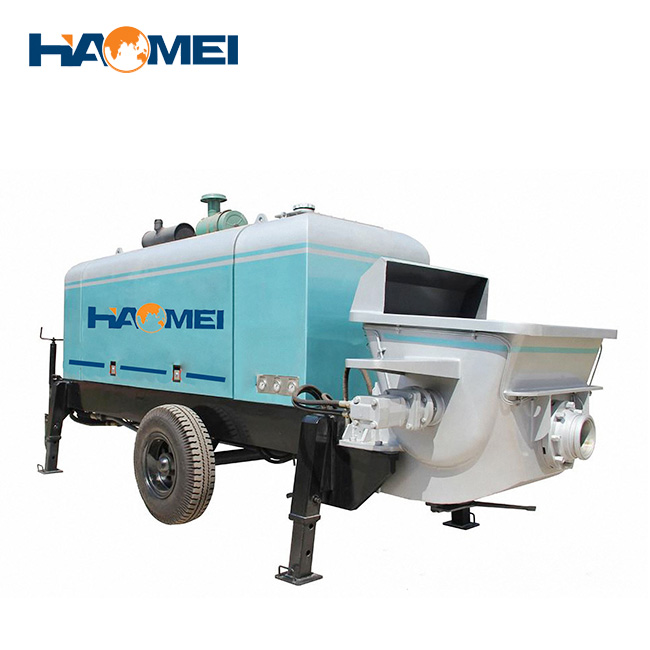

Haomei supplies diesel power trailer concrete pump of 25m3, 30m3, 40m3, 60m3 and 80m3 per hour. A diesel trailer concrete pump relies on its own diesel engine to provide power to the main oil pump and drive the operation of the entire system.
Parameters of Haomei diesel trailer mounted concrete pump series 1
|
Item |
BS25-08-56R |
BS30-10-56R |
HBTSA40-10-66R |
HBTSB40-10-66R |
|
Oil pump |
Rexroth |
Rexroth |
FLUTEK |
FLUTEK |
|
Oil pump outlet (ml/r) |
71 |
71 |
112 |
112 |
|
Theoretical pressure high/low |
25 |
30 |
40/27 |
40/30 |
|
Motor |
Delille 4100 |
Delille 4100 |
Delille 66 |
Delille 66 |
|
Main cylinder dia. stroke(mm) |
Φ80/845 |
Φ80/845 |
Φ100/1300 |
Φ100/1300 |
|
Concrete cylinder dia. stroke(mm) |
Φ140/845 |
Φ140/845 |
Φ160/1300 |
Φ180/1300 |
|
Hydraulic pipe |
MAULI |
MAULI |
MAULI |
MAULI |
|
Sealing |
PARKER |
PARKER |
PARKER |
PARKER |
|
Electric control system |
Schneider |
Schneider |
Schneider |
Schneider |
|
PLC unit |
Omron |
Omron |
Omron |
Omron |
|
Remoter |
wireless |
wireless |
wireless |
wireless |
|
High/low pressure switch |
no |
no |
yes |
yes |
|
Valve units |
Huade |
Huade |
Huade |
Huade |
|
Pumping distance hori/vertical(mm) |
300/120 |
400/160 |
600/180 |
600/180 |
|
Pressure meter |
Germany |
Germany |
Germany |
Germany |
|
Button |
Schneider |
Schneider |
Schneider |
Schneider |
|
Lubricating system |
Full hydraulic |
Full hydraulic |
Full hydraulic |
Full hydraulic |
|
Outlet diameter(mm) |
Φ100 |
Φ100 |
Φ125 |
Φ150 |
Parameters of Haomei diesel trailer mounted concrete pump series 2
|
Item |
HBTSC40-12-82R |
HBTS60-12-82R |
HBTS80-16-129R |
HBTS80-13-129R |
|
Oil pump |
FLUTEK |
FLUTEK |
FLUTEK |
FLUTEK |
|
Oil pump outlet (ml/r) |
112 |
112 |
112*2 |
112*2 |
|
Theoretical pressure high/low |
40/33 |
60/36 |
85/50 |
85/50 |
|
Motor |
DEUTZ 82 |
DEUTZ 52 |
DEUTZ 129 |
DEUTZ 129 |
|
Main cylinder dia. stroke(mm) |
Φ1000/1200 |
Φ110/1300 |
Φ140/1800 |
Φ125/1650 |
|
Concrete cylinder dia. stroke(mm) |
Φ180/1200 |
Φ180/1300 |
Φ200/1800 |
Φ200/1650 |
|
Hydraulic pipe |
MAULI |
MAULI |
MAULI |
MAULI |
|
Sealing |
PARKER |
PARKER |
PARKER |
PARKER |
|
Electric control system |
Schneider |
Schneider |
Schneider |
Schneider |
|
PLC unit |
Omron |
Omron |
Omron |
Omron |
|
Remoter |
wireless |
wireless |
wireless |
wireless |
|
High/low pressure switch |
yes |
yes |
yes |
yes |
|
Valve units |
Huade |
Huade |
Huade |
Huade |
|
Pumping distance hori/vertical(mm) |
600/180 |
600/180 |
1200/350 |
1000/280 |
|
Pressure meter |
Germany |
Germany |
Germany |
Germany |
|
Button |
Schneider |
Schneider |
Schneider |
Schneider |
|
Lubricating system |
Full hydraulic |
Full hydraulic |
Full hydraulic |
Full hydraulic |
|
Outlet diameter(mm) |
Φ150 |
Φ150 |
Φ180 |
Φ180 |
Advantages of our concrete pump trailer diesel
1. With anti-pump function, it is helpful to eliminate pipe blocking faults in a timely manner and can be shut down for a short time to wait for materials.
2. The wear gap can be compensated automatically and the sealing performance is good.
3. Adopt wear-resistant alloy glasses plate and floating cutting ring, long service life.
4. The long-stroke material cylinder extends the service life of the material cylinder and piston.
