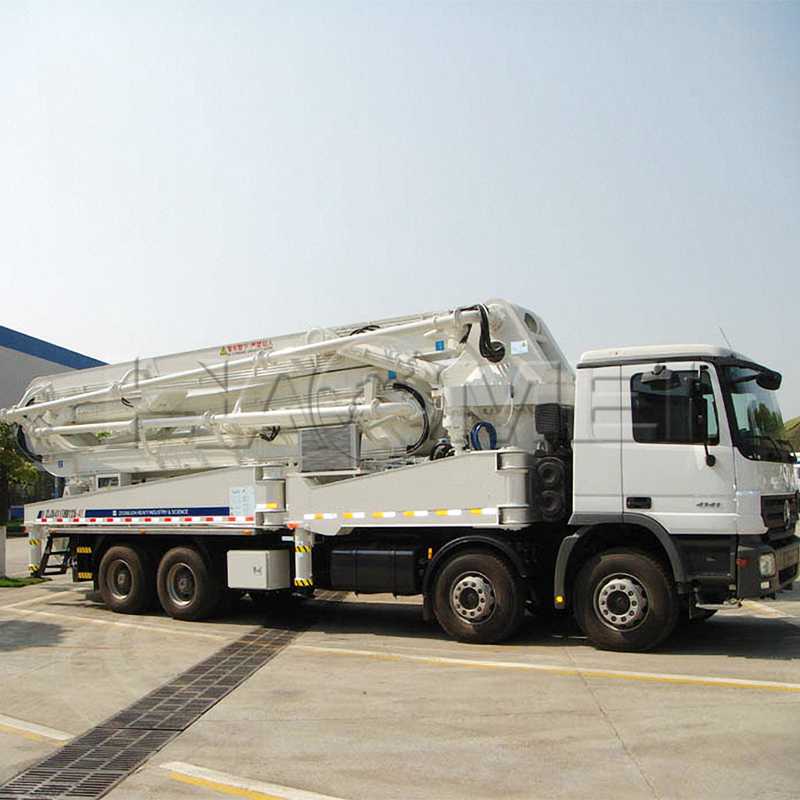

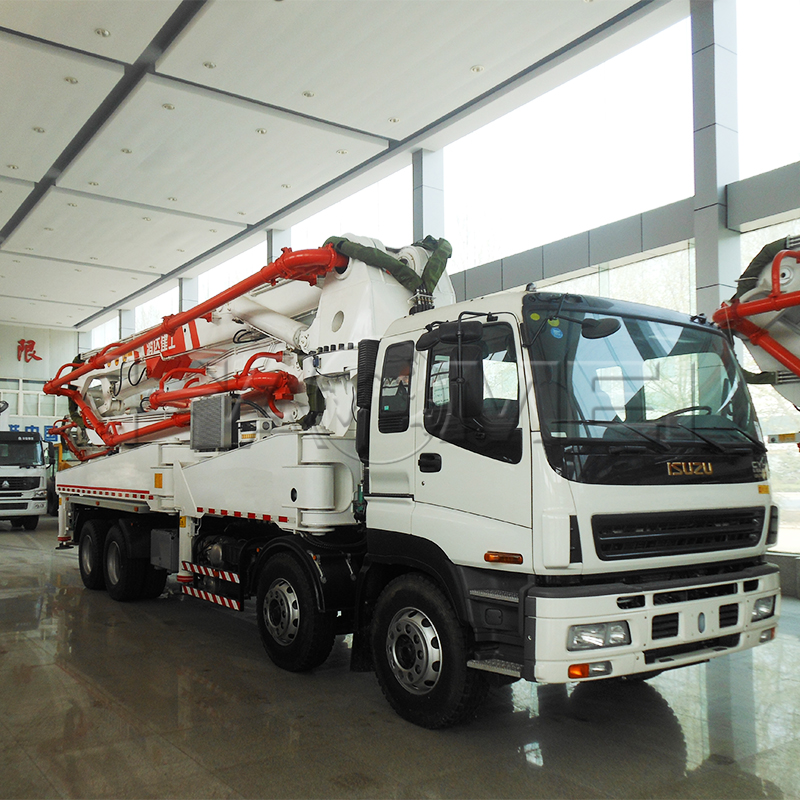

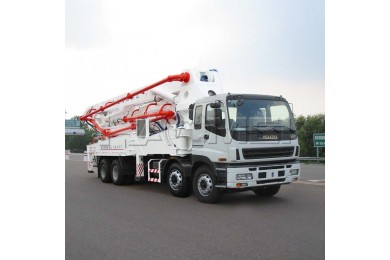

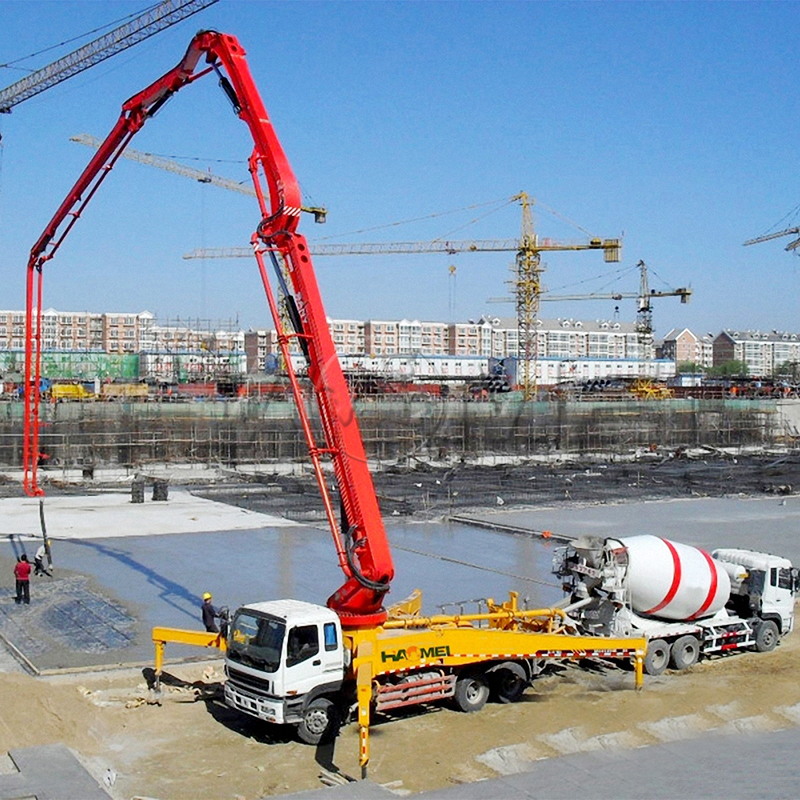

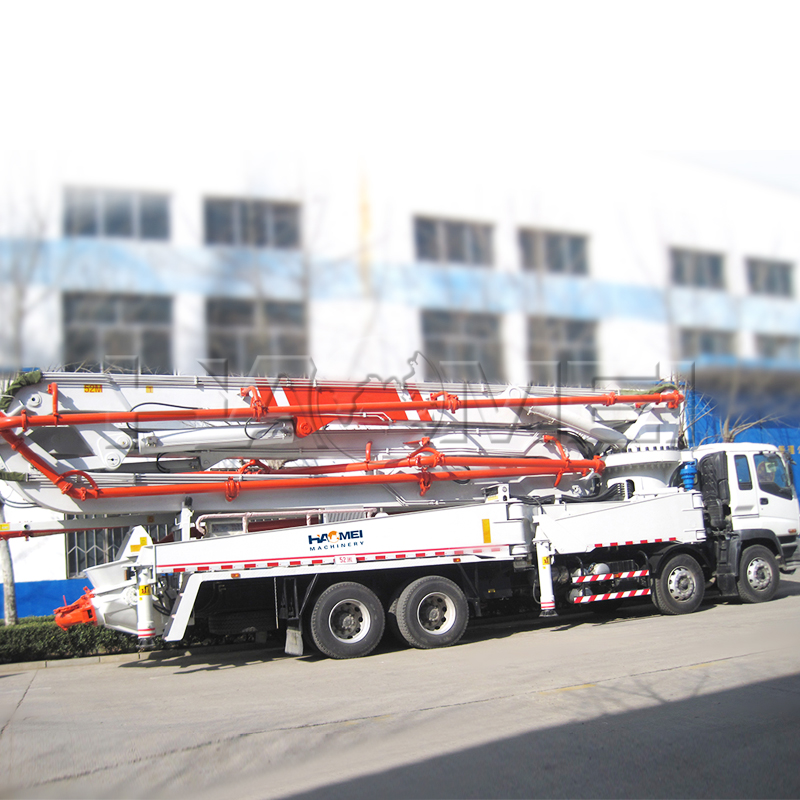

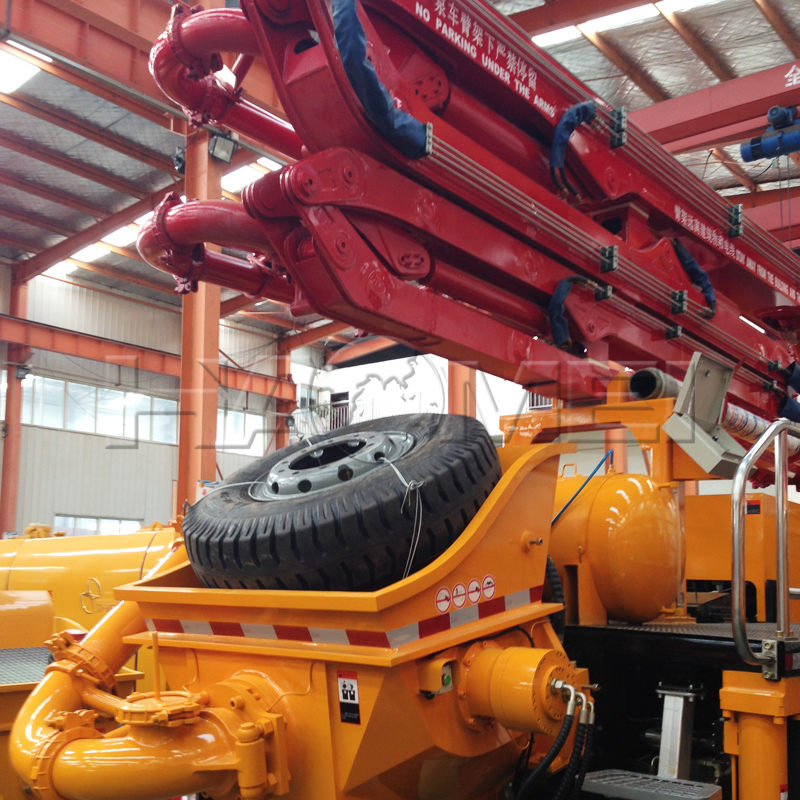

1. The Description of HDT5291THB-37/39/4 Concrete Pump Truck:
1. The power system of concrete pump truck is consisted by technical diesel engine or electrical engine.
2. It can drive the pumping system directly which is samplized the linkage structure and improved the efficiency.
3. Strong power system reduced the rate of occurring faults.

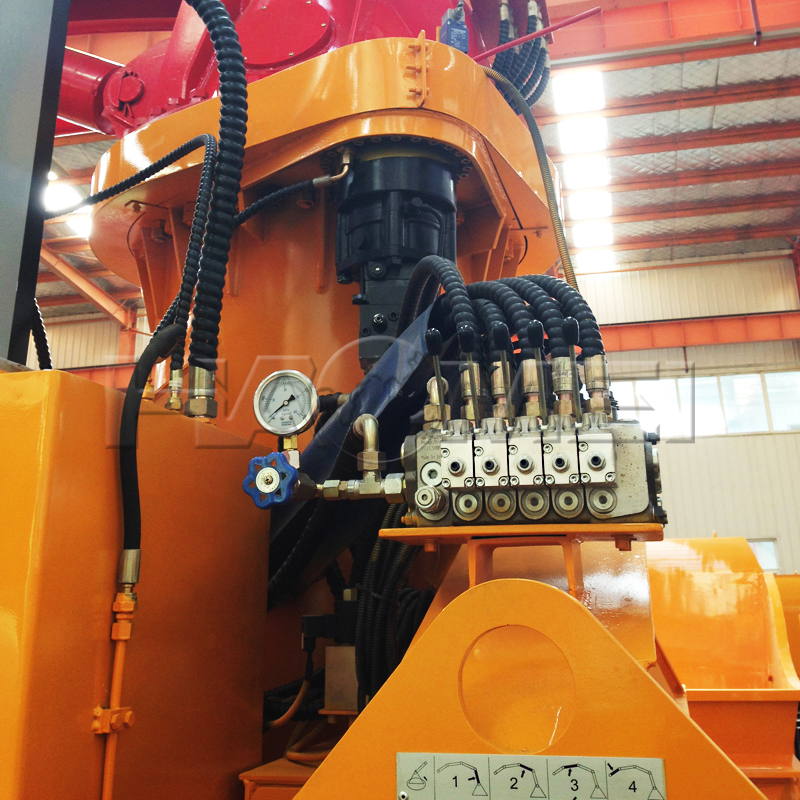

4. The elements of electrical controlling system adopt Japan and Germany original parts. The excellent assembly quality can fully guarantee the function of electrical controlling system.
5. The special design of hopper and vane reduces the space of mixing blind angle which makes the machine suitable for many kinds of concrete.
2. The Parameters of HDT5291THB-37/39/4 Concrete Pump Truck:
|
HDT5291THB-37/39/4 Concrete Pump |
|
|
Specification |
Value |
|
Output in theory(m3/h) |
125 |
|
Index of the pump carry capacity(Mpa.m3/h) |
586 |
|
Theoretic pumping pressure(Mpa) |
8.5 |
|
Bucket volume(L) |
700 |
|
Height of top surface of bucket(mm) |
1370 |
|
Model of distribution valve(S) |
valve |
|
Max. operation radius(m) |
32.6/34.7 |
|
Max. operation height(m) |
36.6/38.7 |
|
Max. operation depth(m) |
25.5/27 |
|
Open height of boom(mm) |
8450/8830 |
|
Distance between front landing legs(mm ) |
7058/6800 |
|
Distance between rear landing legs(mm) |
6848/7000 |
|
Distance between front & rear landing legs(mm) |
6790/7432 |
|
Diameter of delivery pipe(mm) |
125 |
|
Length of hose pipe(m) |
4 |
|
Rotary range of boom |
365° |
|
Quantity of boom |
4 |
|
Rotary angle of each boom(°) |
92/180/180/270 |
|
Wire line control distance(m) |
33 |
|
Romote control distance(m) |
200 |
|
Max. speed(km/h) |
90 |
|
Min. turn radius(mm) |
8800 |
|
8800(m) |
7 |
|
Approach angle(°) |
16 |
|
Departure angle(°) |
11 |
|
Chassis model |
HOWO ZZ5307N4647C |
|
Wheel base between the first & the second axle(mm) |
4600 |
|
Wheel base between the second & the third axle(mm) |
1350 |
|
Front tread(mm) |
2022 |
|
Rear tread(mm) |
1830 |
|
Max. engine output power(kw) |
247(2200r/min) |
|
Max. engine output torque(n.m) |
1350(1100-1600r/min) |
|
Max, gradient ability(%) |
35 |
|
Fuel consumption(L/100km) |
34 |
|
(××)out dimension(L×W×H)mm |
12000×2490×3850/12500×2490 |
|
Total weight(kg) |
29000/12500×2490×3950 |
|
|
|
