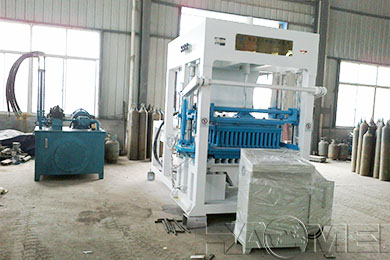

QT12 15 concrete brick making machine

Technical parameters of QT12 15 concrete brick making machine

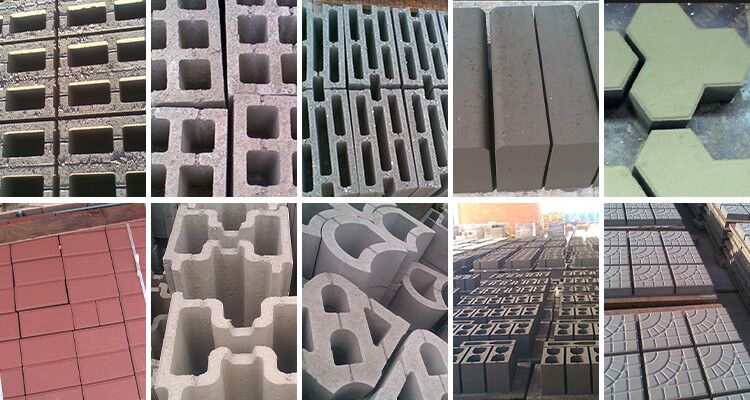

Brick modes of QT12-15 concrete brick making machine

Technical features of QT12 15 concrete brick making machine

1. Sophisticated design: The balance system adopts a six-bar guiding method, and the super-long rectangular guide sleeve ensures the precise movement of the indenter and the mold box. The rack adjustment system improves the balance and coordination of the indenter and the mold box in the production process. The double-cylinder arm fabric increases the fabric speed, shortens the fabric time, and shows durability and stability.

2. The hydraulic control system adopts a high dynamic double proportional valve, which can automatically adjust the flow rate and adjust the pressure during the production process to protect the oil cylinder and greatly enhance the cushioning effect of the oil cylinder's forward and backward endpoints, thereby improving stability and extending the service life of the oil cylinder. Improve the speed and flexibility of various parts of the movement.

Vibration system: Controlled by servo frequency conversion technology, the exciter assembly is oil-immersed, and the vibration platform adopts a combination of dynamic and static, which increases the load load during high-speed operation, so that the concrete is fully liquefied and exhausted instantly, and the size of the finished product More standard.

4. High degree of automation: As a popular QM Series Brick Making Machine, the QT12 15 concrete brick making machine has a high degree of mechanization, advanced process design, and adopts international advanced high-tech PLC control technology to integrate the main body of the machine and electrical equipment. Researchers use safe logic control to diagnose faults, text alarms, etc. In addition to the numerous prompt functions in the PLC, it can promptly and accurately inform the user of the cause of the failure and the treatment method when the machine is operated incorrectly.

5. The system is stable and safe: It is manufactured with the design principle of strong and weak separation, weak current control and strong current, which can eliminate the external interference of strong current and maintain accurate and accurate signal collection, and also ensure the safety of people and equipment. The hydraulic system adopts the oil-immersed electromagnetic action design, which can reduce the impact while reducing the oil temperature and increasing the service life to ensure the stability of the system.

6. Turn waste into treasure: the raw materials can use a variety of local waste resources. The products produced have the characteristics of high strength, light weight and low cost. In the case of raw materials permitting, it can be palletized instantly, without firing, steaming, energy saving and environmental protection, and it can turn waste into treasure.
